Opengear CM8116-10G-USB console server RS-232/RJ-45
Part number CM8116-10G-USB
16 SELECTABLE SERIAL PORTS,2X 10GBE SFP+,2X 1GBE,ARM 1.6GHZ 2-CORE 2GB MEM 32GB
- 10Gb SFP+ uplinks connect directly to high-speed networks on select models
- REST API, Docker, and Python support for data center automation
- Dual power supplies with independent monitoring
- Port auto-discovery simplifies serial settings and port labels
- Selectable software serial ports eliminate serial adapters on select models
- Ideal replacement for legacy terminal servers
- Ships with two C14 power cables standard
- Manufacturer
- Opengear
- Part number
- CM8116-10G-USB
- Condition
- New
- Category
- Network Devices › Servers
- 1GPA category
- Hardware
Overview

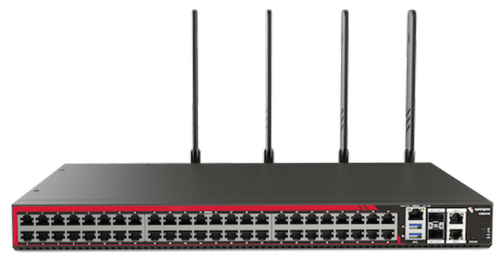

The CM8100 Series is Opengear’s high-density console manager, built to keep critical infrastructure reachable under any condition. It supports up to 96 serial ports across 1GbE and 10GbE models, with select models adding 5G cellular (-C) for resilient out-of-band access. TPM 2.0 delivers enterprise-grade hardware security, and REST API, Docker, and Python support let teams run automation at the edge. Manage every device and site at scale through Opengear’s Lighthouse® Software.
Secure remote access for data centers, enterprise networks, and edge sites
16, 32, 48, and 96 port serial console server with Smart Out-of-Band
Built-in 5G cellular modem on C models for added bandwidth and reliability
Hardware-based TPM 2.0 provides secure boot
Manage at scale through Opengear Lighthouse
Specifications
| Mobile network generation | 5G |
|---|---|
| Cooling type | Passive |
| Rack mounting | Yes |
| Supported programming languages | Perl, Python |
| MIB support | Yes |
| Cellular | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Web-based management | Yes |
| Temperature sensor | Yes |
| Product colour | Black, Red |
| Security algorithms | IPSec, SNMP, SSH |
|---|---|
| Authentication method | TACACS+, RADIUS, OpenLDAP |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Console port | RS-232/RJ-45 |
|---|---|
| Serial ports quantity | 16 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| AC outlet types | C14 coupler |
| Compliance certificates | RoHS |
|---|
| Dimensions (WxDxH) | 440 x 265 x 44 mm |
|---|---|
| Weight | 3.5 kg |
| Power source type | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Number of power supply units | 2 |
| Operating temperature (T-T) | 5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Internal memory | 2000 MB |
|---|---|
| Flash memory | 32000 MB |
| RAM type | DDR4 |
| eMMC capacity | 32 GB |
| Processor family | Marvell |
|---|---|
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 1600 MHz |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
|---|
