Opengear

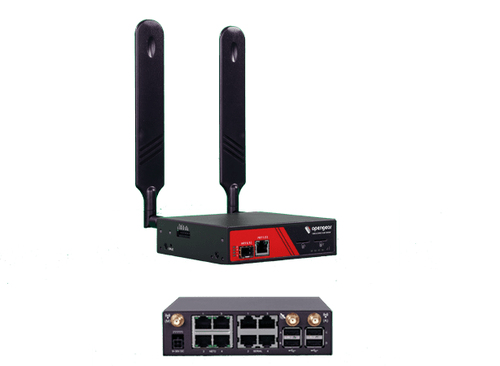

Opengear ACM7004-2-GLB gateway/controller 10, 100, 1000 Mbit/s

Part number ACM7004-2-GLB

4 SERIAL STRAIGHT PINOUT2 GBE ETH 4 USB CONSOLE PT2DIO2 OUTPUT

  • 10,100,1000 Mbit/s
  • Built-in processor 800 MHz 256 MB 32 MB
  • Antenna type: External
  • Rack mounting
  • Black, Red
Manufacturer
Opengear
Part number
ACM7004-2-GLB
Term
Per Ingram SKU US5523
Condition
New
Category
Network Devices › Servers
1GPA category
Hardware

Overview

For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable.

Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem.

Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.

Specifications

Design
Product colourBlack, Red
Mounting typeRack mounting
Features
Antenna typeExternal
Performance
Control display unitNo
Built-in processorYes
Processor frequency800 MHz
Internal memory256 MB
Internal memory typeDDR3
Flash memory32 MB
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Ports & interfaces
USB 2.0 ports quantity4
RS-232 ports4
SIM card slotYes
Ethernet LAN (RJ-45) ports2
Fixed SFP ports quantity1
Power
Power consumption (typical)11.5 W
Input voltage110 - 240 V
DC input voltage12 V
Software
Operating system installedLinux
Weight & dimensions
Width130 mm
Depth120 mm
Height35 mm
Weight6 kg
Operational conditions
Operating temperature (T-T)-25 - 60 °C
Storage temperature (T-T)-40 - 75 °C
Logistics data
Harmonized System (HS) code85176990

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
