NETGEAR WAX610W 1800 Mbit/s White Power over Ethernet (PoE)
Part number WAX610W-100NAS
NETGEAR INSIGHT MANAGED WIFI 6 AX1800 DUAL-BAND GIGABIT POE ACCESS POINT (WAX610
- Dual-band delivering 1.8 Gbps of data throughput
- Purpose-built for hospitality, MDUs, and classrooms
- Connect to a Gigabit Ethernet switch for maximum speed
- 8 separate wireless networks (SSIDs)
- Simplified deployment with PoE
- VLAN and QoS configurable via Insight Remote Cloud Management
- Compatible with WiFi 4, WiFi 5, WiFi 6E and WiFi 7 on the 2.4 and 5GHz Bands
- Manufacturer
- NETGEAR
- Part number
- WAX610W-100NAS
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
POWERFUL BUSINESS WIFI
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz bands simultaneously.
IDEAL FOR HOSPITALITY & EDUCATION
Ultimate WiFi performance for hotels, multi-dwelling units (MDUs), and classrooms.
SEAMLESS MESH WIFI
Seamlessly expand your network with any mesh-connected Insight access points.
EASY DEPLOYMENT

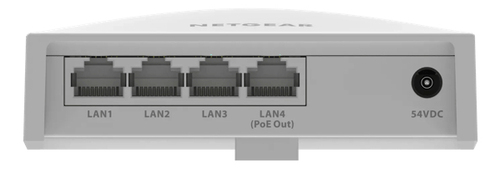

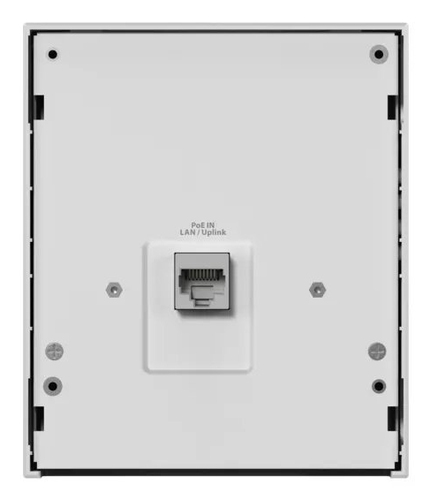

One PoE Gigabit port for easy setup, plus four additional LAN ports to connect to IP phones, smart TVs, and more.
CUSTOM GUEST WIFI
Create a branded, customizable guest WiFi experience with the optional Captive Portal.
Specifications
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Frequency band | 2.5 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDM, OFDMA |
| Fast roaming | Yes |
| Security algorithms | EAP, TLS, TTLS |
|---|---|
| MAC address filtering | Yes |
| Guest access | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
|---|---|
| Output voltage | 54 V |
| Output current | 1.2 A |
| Placement | Desk |
|---|---|
| Product colour | White |
| LED indicators | Network, Power, Status |
| Antenna type | Internal |
|---|
| Width | 110 mm |
|---|---|
| Depth | 130 mm |
| Height | 34.2 mm |
| Weight | 380 g |
| Quantity per pack | 1 pc(s) |
|---|
| Warranty period | 5 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
