Products › Network Devices

NETGEAR

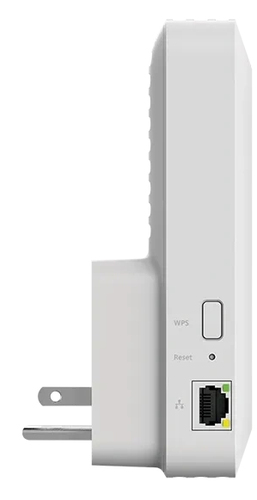

NETGEAR AX3000 Network repeater White 10, 100, 1000 Mbit/s

Part number EAX17-100NAS

1PT AX3000 WIFI 6 MESH EXTENDER

  • Blazing Fast Speeds
  • Upgrade your WiFi to First Class
  • WiFi for the Whole House
  • Increased Processing Power
  • One (1) Gigabit Ethernet Port
  • One WiFi Name
Manufacturer
NETGEAR
Part number
EAX17-100NAS
Condition
New
Category
Network Devices › Wireless Networking
1GPA category
Hardware

Overview

This powerful WiFi 6 Mesh Extender easily creates a mesh WiFi 6 system with your existing router. WiFi 6 delivers great capacity, fast speed, and more coverage. Experience seamless WiFi coverage on more devices throughout your home with speeds up to 3 Gbps.

WiFi 6: Upgrade Your WiFi

With WiFi 6, you get faster speeds and more device capacity than WiFi 5. Stream in ultra HD 4K/8K, video call, and more without getting interrupted or slowed down, even as you connect more devices to your network. It’s like upgrading your WiFi to first class.

Easily Create a Mesh WiFi 6 System with your existing router

Expand coverage of your existing router using your current WiFi name and password. The wall-plug design has three powerful internal antennas that extend WiFi signals to where your router WiFi cannot reach. This AX3000 Mesh Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

Enjoy Uninterrupted Connectivity with Smart Roaming throughout Your Home

The EAX17 is a simple, powerful solution for extending reliable coverage and maintaining maximum WiFi speeds throughout your home or office. With Smart Roaming, it automatically connects your device to the strongest available signal as you move around, ensuring smooth uninterrupted connectivity. Whether you’re streaming, video conferencing, or gaming, the EAX17 delivers seamless, high-performance WiFi for all your needs.

Easy Setup and Use with the Nighthawk App

With the Nighthawk app, setup takes just minutes, so you can start enjoying better WiFi sooner. You can also see your connected devices, run an internet speed test, manage your NETGEAR service subscriptions, and more from the palm of your hand.

Specifications

Performance
TypeNetwork repeater
Data transfer rate3000 Mbit/s
Cable types supportedCat5e, Cat6
Ethernet LAN data rates10,100,1000 Mbit/s
BeamFormingYes
Auto MDIX IEEEYes
WPS push buttonYes
Auto-negotiationYes
Duplex systemFull
Mobile app supportYes
Web-based setup wizardYes
Plug and PlayYes
Antenna
Antennas quantity3
Antenna typeInternal
Network
Ethernet LAN interface typeGigabit Ethernet
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3ab
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)3000 Mbit/s
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)600 Mbit/s
WLAN data transfer rate (second band)2400 Mbit/s
WLAN data transfer rates supported600,2402 Mbit/s
MU-MIMO technologyYes
Bandwidth5 GHz
Security algorithmsWEP, WPA, WPA2, WPA3
Web-based managementYes
ModulationOFDM
Ports & interfaces
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Design
Product colourWhite
Housing materialPlastic
Mounting typeWall
LED indicatorsYes
Quantity per pack1 pc(s)
Reset buttonYes
Weight & dimensions
Width68.4 mm
Depth52.3 mm
Height149 mm
Weight222 g
Packaging content
Cables includedLAN (RJ-45)
ManualYes
Quick start guideYes
AC adapter includedYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
