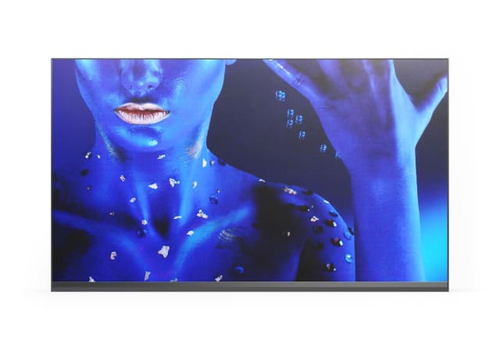

Sharp LED-FA012i2-110 Indoor
Part number LED-FA012I2-110
CONTACT YOUR NEC REP FOR FURTHER INFORMATION.)DVLED 1.2MM PITCH VIDEO WALL - 110
- Ultimate Versatility – small 16:9 modules allowing excellent flexibility within the available space.
- Secure performance for demanding applications – with high-end components and redundant module design with additional power supply and data cards to ensure ongoing operations with a minimal loss of brightness levels.
- Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
- Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from Sharp/NEC’s long lasting quality.
- Manufacturer
- NEC DISPLAY SOLUTIONS
- Part number
- LED-FA012I2-110
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Overview
For premium large surface visualization, Sharp’s fine pitch LED FA series modules provide standard resolution, direct view LED screens for applications in meeting spaces and exclusive signage.
Nothing less than magnificent
With a depth of just 5 cm, plus complete internal cabling, the FA series presents a sleek profile for a bezel-free viewing experience. With excellent viewing angles, consistent vibrant colours and superb brightness; the FA series delivers content that gets noticed. Designed with high quality components and maintenance access from the front, the FA series provides a display solution with longevity and good return on investment. The prime solution for boardrooms, auditoria, luxury retail environments and control rooms.
Specifications
| Display technology | LED |
|---|---|
| Display diagonal | 2.79 m (110") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Pixel pitch | 1.2 x 1.2 mm |
| Display brightness | 800 cd/m² |
| Colour temperature (min) | 3000 K |
| Colour temperature (max) | 9500 K |
| Contrast ratio (typical) | 5000:1 |
| Native refresh rate | 3840 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Colour depth | 16 bit |
| Dimming capability (levels) | 256 |
| Mean time between failures (MTBF) | 100000 h |
| Placement supported | Indoor |
|---|---|
| Orientation | Horizontal |
| Frame material | Aluminium |
| International Protection (IP) code | IP20 |
| Power consumption (typical) | 912 W |
|---|---|
| Power consumption (max) | 2000 W |
| Operating temperature (T-T) | -20 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Width | 608 mm |
|---|---|
| Depth | 49 mm |
| Height | 342 mm |
| Weight | 8.8 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
