MSI
MSI VENTUS GeForce RTX 5080 16G 3X OC NVIDIA 16 GB GDDR7
Part number G5080-16V3C
RTX 5080 16G VENTUS 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clocks:
- Extreme Performance: 2655 MHz (MSI Center)
- Boost: 2640 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

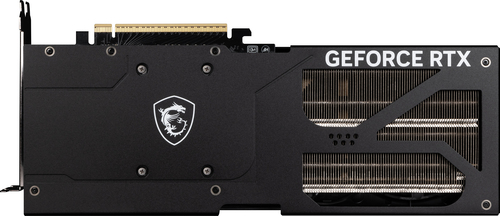

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
- Manufacturer
- MSI
- Part number
- G5080-16V3C
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
Specifications
| CUDA | Yes |
|---|---|
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor boost clock speed | 2640 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
|---|---|
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 30 GB/s |
| Interface type | PCI Express x16 5.0 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
|---|---|
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Grey |
| Minimum system power supply | 850 W |
|---|---|
| Power consumption (typical) | 360 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 1.1 kg |
|---|---|
| Length | 303 mm |
| Depth | 49 mm |
| Height | 121 mm |
| Package width | 386 mm |
|---|---|
| Package depth | 90 mm |
| Package height | 235 mm |
| Package weight | 1.58 kg |
| Package type | Box |
| Cables included | Power |
|---|
| Legal guarantee | 3 year(s) |
|---|
| Products per shipping (inner) case | 1 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
