MSI

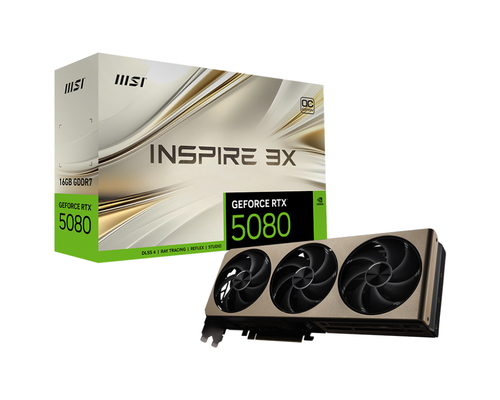

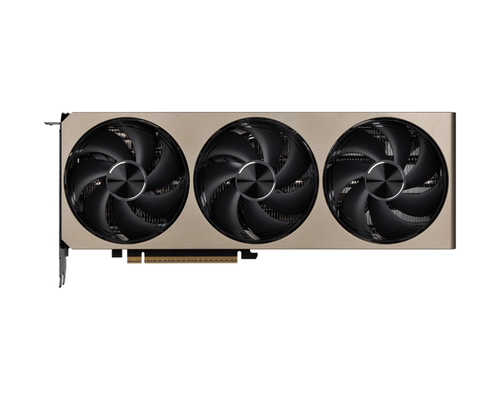

MSI GEFORCE RTX 5080 16G INSPIRE 3X OC graphics card NVIDIA 16 GB GDDR7
Part number G5080-16I3C
RTX 5080 16G INSPIRE 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
- Extreme Performance: 2655 MHz (MSI Center)
- Boost: 2640 MHz
- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow
- AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle

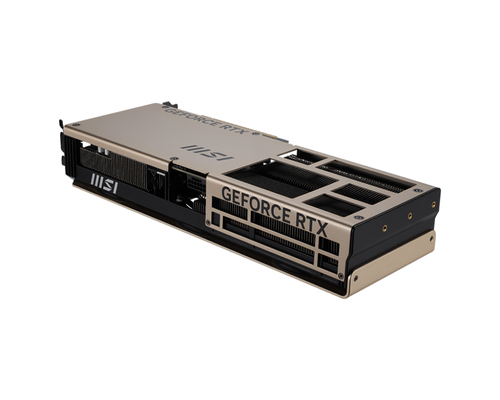

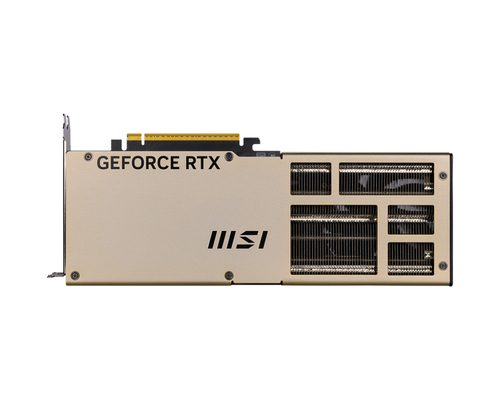

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Manufacturer
- MSI
- Part number
- G5080-16I3C
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview
BIG VISION, SMALL FORM
INSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.
Specifications
| CUDA | Yes |
|---|---|
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor boost clock speed | 2640 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
|---|---|
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 30 GB/s |
| Interface type | PCI Express x16 5.0 |
|---|---|

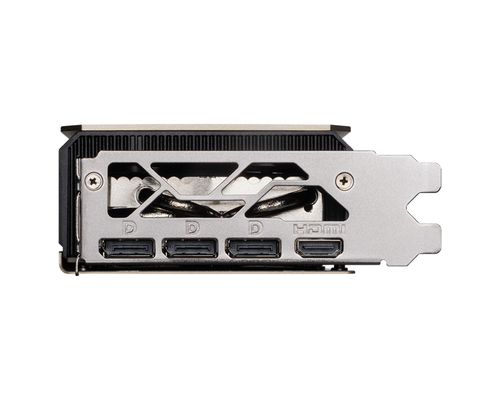

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
|---|---|
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Bronze |
| Minimum system power supply | 850 W |
|---|---|
| Power consumption (typical) | 360 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 950 g |
|---|---|
| Length | 288 mm |
| Depth | 50 mm |
| Height | 112 mm |
| Package weight | 1.44 kg |
|---|---|
| Package type | Box |

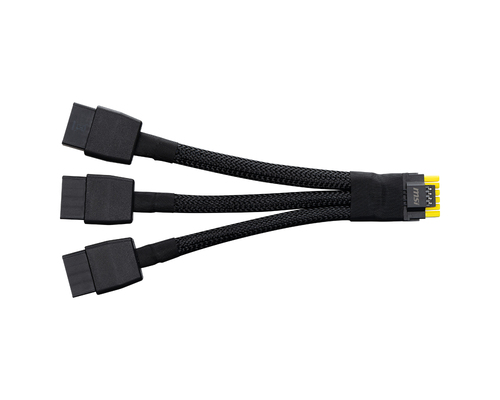

| Cables included | Power |
|---|
| Legal guarantee | 3 year(s) |
|---|
