MSI GEFORCE RTX 5060 8G VENTUS 3X OC graphics card NVIDIA 8 GB GDDR7
Part number G5060-8V3C
RTX 5060 8G VENTUS 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clock:
- Extreme Performance: 2550 MHz (MSI Center)
- Boost: 2535 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

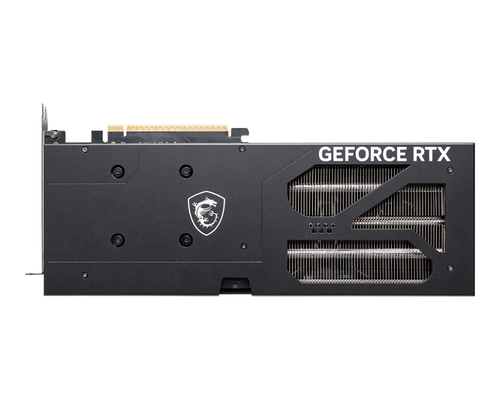

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
- Manufacturer
- MSI
- Part number
- G5060-8V3C
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

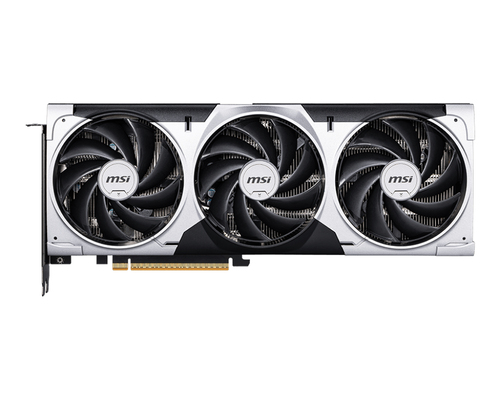

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
MSI CENTER
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.
AFTERBURNER
PRECISION CONTROLS,
UNLIMITED POWER
MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.
MSI APP PLAYER
SEAMLESS GAMING EXPERIENCE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
Specifications
| CUDA | Yes |
|---|---|
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor boost clock speed | 2535 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
|---|---|
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x16 5.0 |
|---|---|

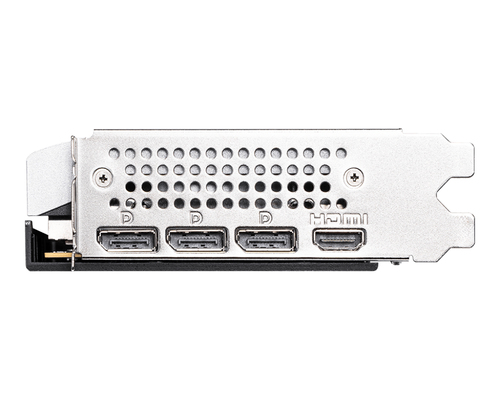

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
|---|---|
| Cooling technology | MSI TORX FAN 5.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Silver |
| Minimum system power supply | 550 W |
|---|---|
| Power consumption (typical) | 145 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 684 g |
|---|---|
| Length | 303 mm |
| Depth | 41 mm |
| Height | 121 mm |
| Package weight | 1.04 kg |
|---|---|
| Package type | Box |
| Cables included | Power |
|---|
| Legal guarantee | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
