MSI Cubi NUC AI+ 2MG-002BUS USFF Black 288V BGA 2833 Built-in speaker(s)
Part number CUNUCAI2MG002B
CUBI NUC AI+ 2MG-002BUS BAREBONE/COREULTRA9-288V/32G/BLK/3Y
- No OS
- Intel Core Ultra 9 288V (12MB Cache)
- Manufacturer
- MSI
- Part number
- CUNUCAI2MG002B
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
You sketch it.
Cocreator creates it.
Let your inner artist thrive with guidance from Cocreator.
Built-in D-Mic & Speaker
Enabling voice control for AI applications using the built-in D-Mic & speaker eliminates the need for external audio devices, conserving desk space and reducing clutter.
Intel® AI Playground
Offering various AI capabilities, including image creation, enhancement, and chatbot responses, all functions run locally on the PC, ensuring privacy and control over content and input.
For more information, please refer to the official Intel® website.
Mini Yet Powerful
The Cubi NUC comes with a perfect combination of Mini and Power, featuring a 0.826-liter chassis.
Maximize Space with the Versatile Cubi NUC
The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Tailored for Professional Users
Equipped with up to Intel® Core™ Ultra 9 Processor, it delivers faster and more reliable performance, enabling users to multitask various applications effortlessly.
Wi-Fi 7 Support
Wi-Fi 7 delivers ultra-fast speeds and increased network capacity, which is essential for efficiently managing AI workloads.
LPDDR5X Memory on Package (MOP)
LPDDR5X memory can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.

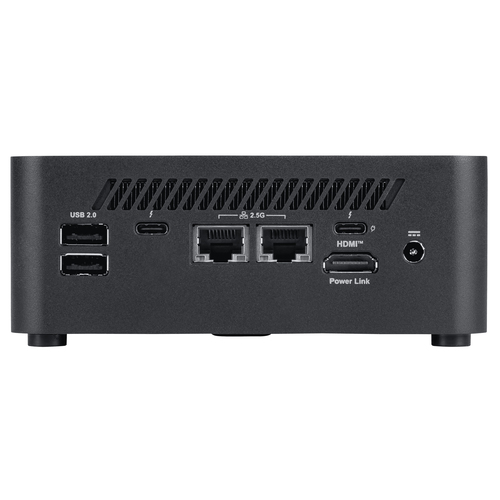

Thunderbolt 4:
A Single Cable to Serve All
The Thunderbolt 4 enables rapid data transfer up to 40 Gbps & power delivery input of up to 100W, crucial for handling large datasets in AI applications, making it an excellent choice for both charging and displaying through a single port.
3-Display Support
Supporting up to 3 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.

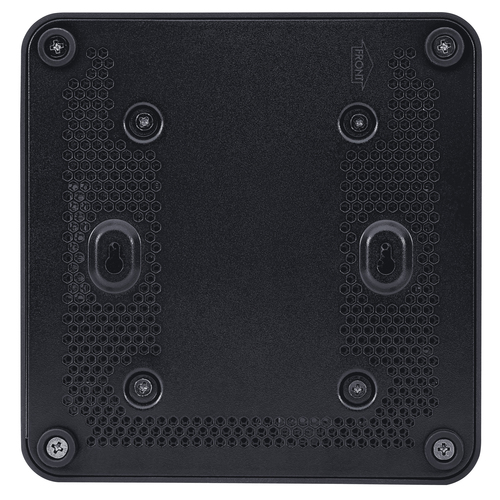

VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
MSI Power Link
The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience
MSI Frozr AI PRO
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 288V |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Performance-core base frequency | 2.2 GHz |
| Built-in processor | Yes |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Internal memory installed | No |
|---|
| Storage drives installed | No |
|---|
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel Arc Graphics 140V |
| Discrete graphics card model | Not available |
| Motherboard form factor | NUC |
|---|---|
| Processor socket | BGA 2833 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC256 |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| PCI Express x1 slots | 1 |
|---|---|
| PCI Express x16 slots | 1 |
| Chassis type | USFF |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Market positioning | Business |
| Number of 3.5" bays | 1 |
| Compliance certificates | CB, Federal Communications Commission (FCC) |
|---|
| Operating system installed | No |
|---|
| Power supply type | External AC adapter |
|---|---|
| Power supply | 120 W |
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Width | 135.6 mm |
|---|---|
| Depth | 132.5 mm |
| Height | 50.1 mm |
| Weight | 667 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.68 kg |
| Display included | No |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Warranty period | 3 year(s) |
|---|
