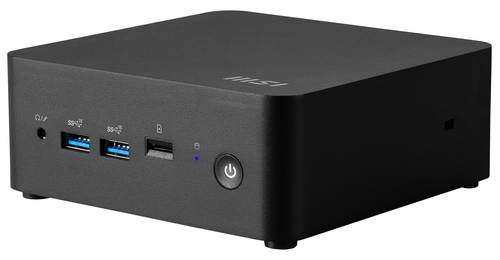

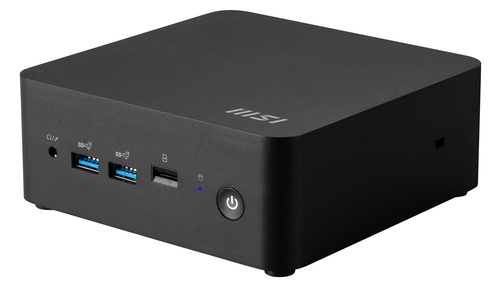

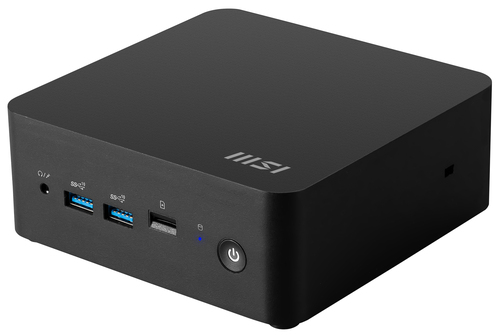

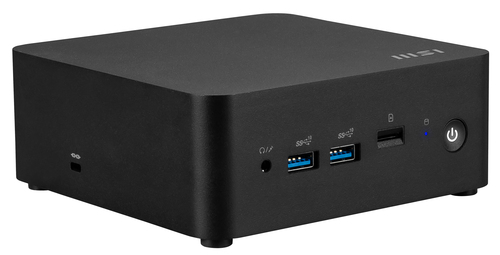

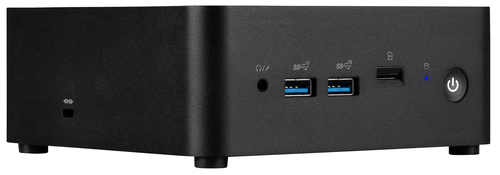

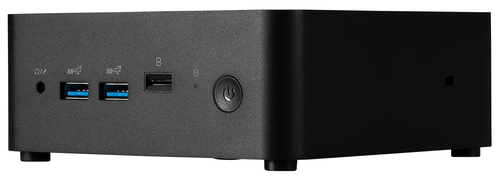

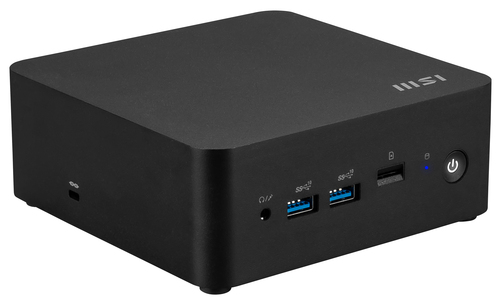

MSI Cubi NUC 1M-009BUS 0.84L sized PC Black 150U Intel SoC
Part number CUBINUC1M009B
CUBI NUC 1M-009BUS BAREBONE/I7-150U/BLK/3YAR
- No OS
- Intel Core 7 150U (12MB Cache)
- Manufacturer
- MSI
- Part number
- CUBINUC1M009B
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core 7 |
|---|
| Processor generation | Intel Core (Series 1) |
|---|
| Processor model | 150U |
|---|
| Processor cores | 10 |
|---|
| Processor threads | 12 |
|---|
| Processor boost frequency | 5.4 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 8 |
|---|
| Performance-core Max Turbo Frequency | 5.4 GHz |
|---|
| Efficient-core Max Turbo Frequency | 4 GHz |
|---|
| Performance-core base frequency | 1.8 GHz |
|---|
| Efficient-core base frequency | 1.2 GHz |
|---|
| Built-in processor | Yes |
|---|
| Processor cache | 12 MB |
|---|
Memory
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Maximum internal memory | 64 GB |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
Storage
| Supported storage drive types | HDD & SSD |
|---|
| Storage drive sizes supported | 2.5,M.2 |
|---|
| SSD form factor | M.2 |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
|---|
Graphics
| On-board graphics card | Yes |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
Performance
| Motherboard form factor | NUC |
|---|
| Motherboard chipset | Intel SoC |
|---|
| Number of processors supported | 1 |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| WLAN controller model | Intel Wi-Fi 6E AX211 |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| LAN controller | Intel I226-V |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.3 |
|---|
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| HDMI ports quantity | 2 |
|---|
| DVI port | No |
|---|
| Microphone in | No |
|---|
| Combo headphone/mic port | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| Thunderbolt 4 ports quantity | 2 |
|---|
| DC-in jack | Yes |
|---|
Expansion slots
| Number of M.2 (M) slots | 2 |
|---|
Design
| Chassis type | 0.84L sized PC |
|---|
| Product colour | Black |
|---|
| Cooling type | Active |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Product type | Mini PC barebone |
|---|
Software
| Operating system installed | No |
|---|
Power
| Power supply type | External AC adapter |
|---|
| Power supply | 120 W |
|---|
Weight & dimensions
| Width | 132.5 mm |
|---|
| Depth | 135.6 mm |
|---|
| Height | 50.1 mm |
|---|
| Weight | 625 g |
|---|
| Package width | 205 mm |
|---|
| Package depth | 220 mm |
|---|
| Package height | 94 mm |
|---|
| Package weight | 1.45 kg |
|---|
Other features
| Warranty period | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
