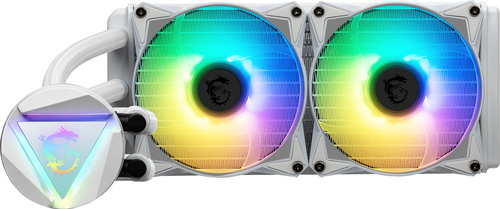

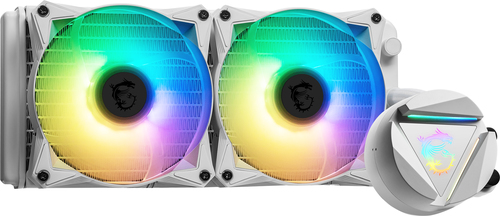

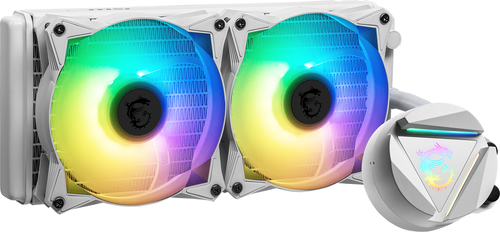

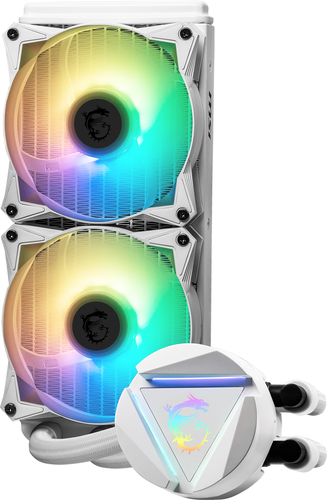

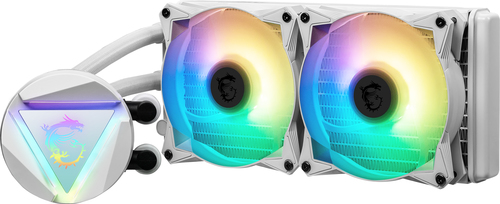

MSI MAG CORELIQUID 240R V2 WHITE Liquid CPU Cooler '240mm Radiator, 2x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
Part number CL240RV2WT
MAG CORELIQUID 240R V2 WHITE AIO LIQUID CPU COOLER
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
- Manufacturer
- MSI
- Part number
- CL240RV2WT
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
POWERED BY MSI
Create and establish the most powerful setup with Powered by MSI products, including PC case, motherboard, liquid cooler, graphics card, and power supply unit.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
LGA 1700 COMPATIBLE
The MAG CORELIQUID V2 Series liquid cooler provides out of box support for LGA 1700.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 240R V2 WHITE’s noise level is significantly lower than that of competitor's by 10%
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
Specifications
| Suitable location | Computer case |
|---|---|
| Type | Cooler |
| Fan diameter | 2.5 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 14.3 dB |
| Noise level (high speed) | 34.3 dB |
| Minimum airflow (imperial) | 21.63 cfm |
| Maximum airflow | 78.73 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.39 mmH2O |
| Bearing type | Dual ball bearing |
| Pump noise level | 18 dB |
| Fan bearing technology | Ball bearing |
| Quantity per pack | 1 pc(s) |
| Product colour | White |
|---|---|
| Radiator material | Aluminum |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Fan power consumption | 1.8 W |
|---|---|
| Pump power consumption | 4.08 W |
| Pump current | 0.34 mA |
| Fan current | 0.15 A |
| Width | 205 mm |
|---|---|
| Depth | 317 mm |
| Height | 137 mm |
| Radiator width | 27.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Weight | 1.31 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package type | Box |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
