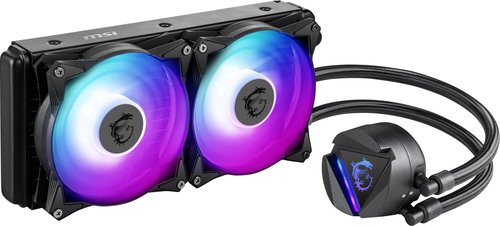

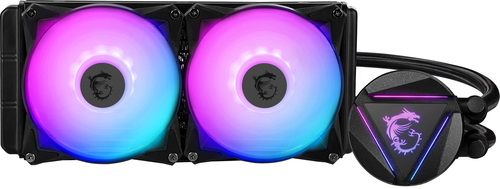

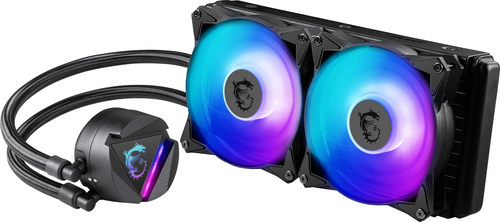

MSI MAG CORELIQUID 240R V2 Liquid CPU Cooler '240mm Radiator, 2x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
Part number CL240RV2
MAG CORELIQUID 240R V2 240MM RADIATOR DUAL 120MM PWN FANS
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
- Manufacturer
- MSI
- Part number
- CL240RV2
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Specifications
| Suitable location | Computer case |
|---|---|
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 14.3 dB |
| Noise level (high speed) | 34.3 dB |
| Minimum airflow (imperial) | 21.63 cfm |
| Maximum airflow | 78.73 cfm |
| Bearing type | Dual ball bearing |
| Pump motor speed | 4200 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2000 RPM |
| Product colour | Black |
|---|---|
| Radiator material | Aluminum |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
| Fan connector | 4-pin |
| Power consumption (typical) | 5.88 W |
|---|---|
| Rated voltage | 12 V |
| Width | 80.6 mm |
|---|---|
| Depth | 66.8 mm |
| Height | 48.6 mm |
| Radiator width | 27.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Country of origin | China |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
