LG

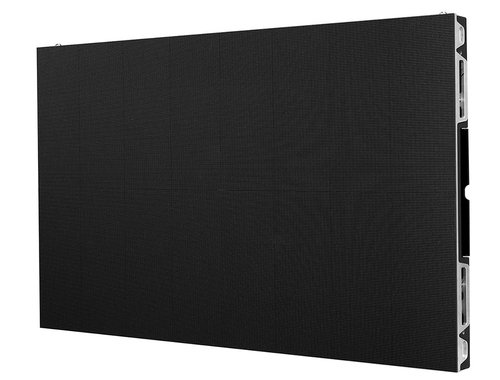

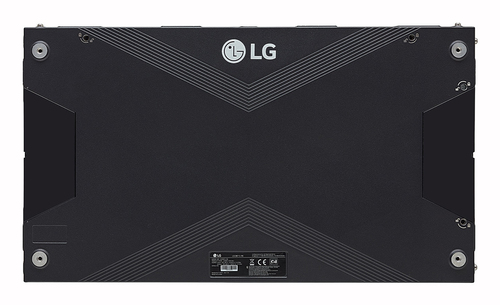

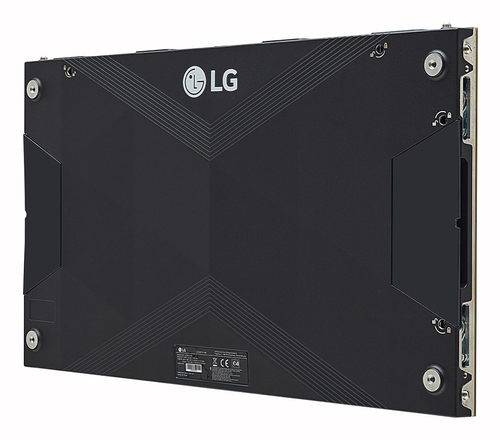

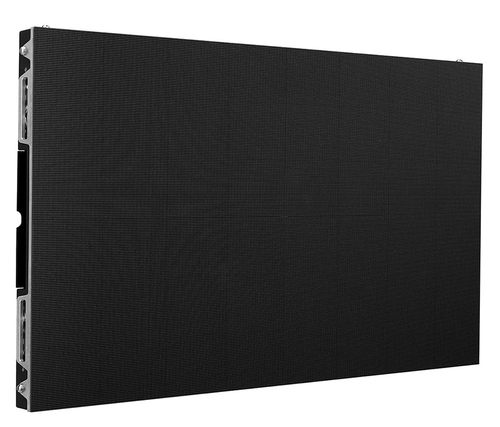

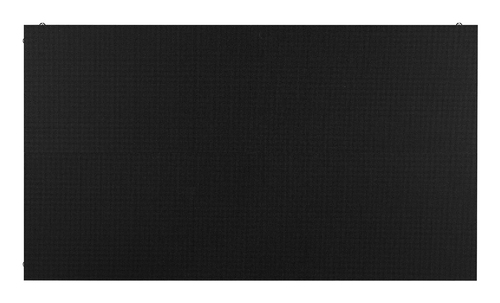

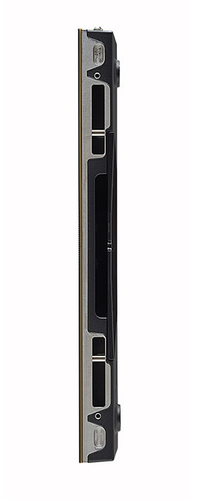

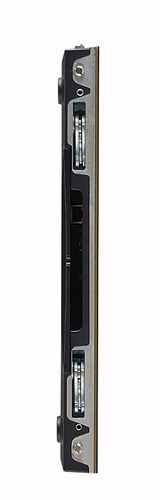

LG LSCC025-GZ LED Indoor

Part number LSCC025-GZ

ULTRA SLIM LSCC 240X135 STNDRD PNL/CBNT 800 NIT

  • Pixel Pitch: 2.5 mm
  • Brightness: 800 nit (Max.)
  • Ultra Slim Depth and Lightweight
  • Flexible Design
Manufacturer
LG
Part number
LSCC025-GZ
Condition
New
Category
Displays › Direct View Displays
1GPA category
Hardware

Overview

Ultra Slim Depth and Lightweight

The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.

Stunning Picture Quality with 4K HDR

All models of the LSCC series deliver 4K HDR while maintaining 800 nits of brightness. Not only do they offer a great contrast ratio and wide viewing angle, but the 4K HDR feature also ensures stunning picture quality.

Superior Energy Efficiency

The LSCC series improves power consumption by 16% to 25%, depending on pitch models, delivering both energy efficiency and lower operating costs. Consequently, the LSCC series stands as the second most energy-efficient model in LG’s indoor PKG lineup as of Aug 2024.

Attachable Wire Hooks for Modules

All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety

90° Corner Design Available

By adding the 90° corner option, the LSCC series seamlessly integrates into any space, delivering smooth content to customers. Additionally, elegantly curved LED screens can be implemented as an option.

Compatibility with LG Software Solutions

When connected with LG's CVCA system controller, the LSCC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.

Specifications

Display
Display technologyLED
Display resolution240 x 135 pixels
Pixel pitch2.5 x 2.5 mm
Display brightness800 cd/m²
Contrast ratio (typical)5000:1
Native refresh rate3840 Hz
High Dynamic Range (HDR) supportedYes
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro)
Viewing angle, horizontal160°
Viewing angle, vertical160°
Brightness uniformity0 - 97%
Panel life100000 h
Design
Placement supportedIndoor
OrientationHorizontal/Vertical
International Protection (IP) codeIP30
Product colourBlack
PurposeCommercial
Power
Power consumption (typical)84 W
Power consumption (max)415 W
AC input voltage100 - 240 V
AC input frequency50 / 60 Hz
Operational conditions
Operating temperature (T-T)-10 - 45 °C
Operating relative humidity (H-H)0 - 80%
Technical details
Compliance certificatesCE, ETL, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), REACH, RoHS
Weight & dimensions
Display width600 mm
Display depth33.6 mm
Display height337.5 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
