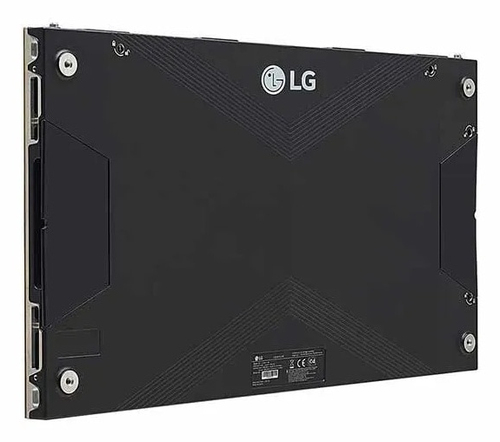

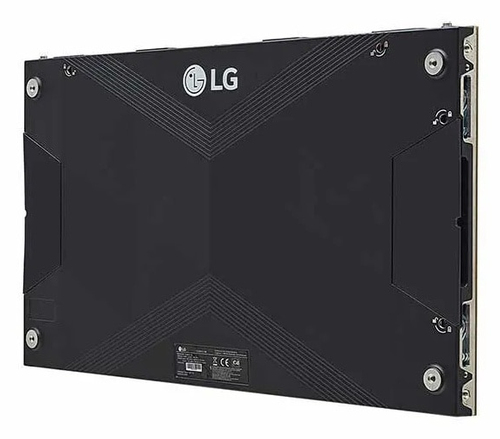

LG LSCB012 LED Indoor
Part number LSCB012-CKF.AUSQ
1.25MM 800NIT 300X337.5X35.6 CURVED
- 800 Nits Brightness & Expressive Colors
- Front Accessible
- IP30, EMS Certified and Fire Resistant
- Customizable (Interchangeable with others LSCB Copper skus.)
- Show your message 24/7
- Manufacturer
- LG
- Part number
- LSCB012-CKF.AUSQ
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Overview
For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations.
The LSCB Series’ ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Easy access to front or rear cabinet for maintenance.
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 480 x 270 pixels |
| Pixel pitch | 1.25 x 1.25 mm |
| Display brightness | 800 cd/m² |
| Colour temperature (min) | 3200 K |
| Colour temperature (max) | 9300 K |
| Contrast ratio (typical) | 5000:1 |
| Native refresh rate | 3840 Hz |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Colour depth | 14 bit |
| Panel life | 100000 h |
| Operating hours (hours/days) | 24/7 |
| Placement supported | Indoor |
|---|---|
| Orientation | Horizontal |
| Number of modules included | 4 |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Power consumption (typical) | 50 W |
|---|---|
| Power consumption (max) | 150 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating temperature (T-T) | -10 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS, REACH, Federal Communications Commission (FCC), CE |
|---|
| Width | 600 mm |
|---|---|
| Depth | 34 mm |
| Height | 337.5 mm |
| Weight | 5.3 kg |
| Module width | 30 cm |
| Module height | 16.9 cm |
| Module weight | 370 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
