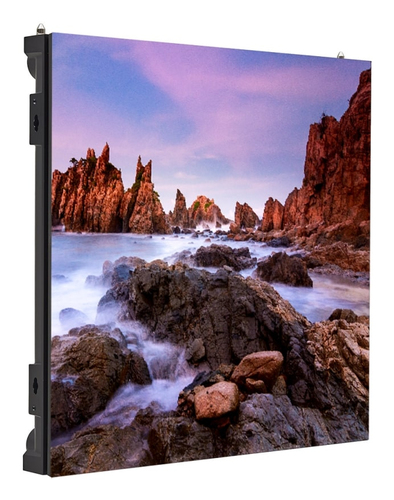

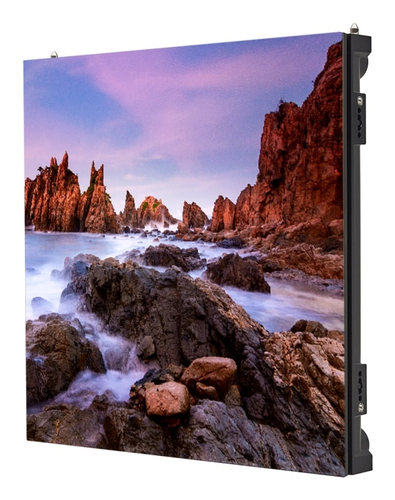

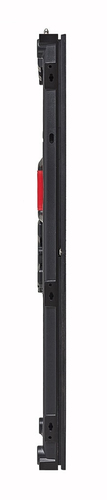

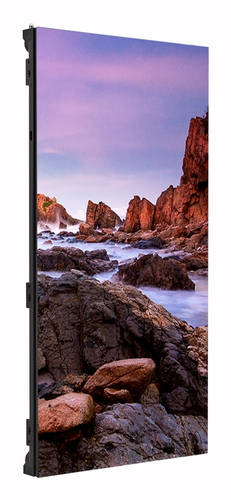

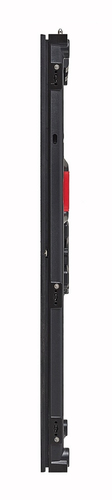

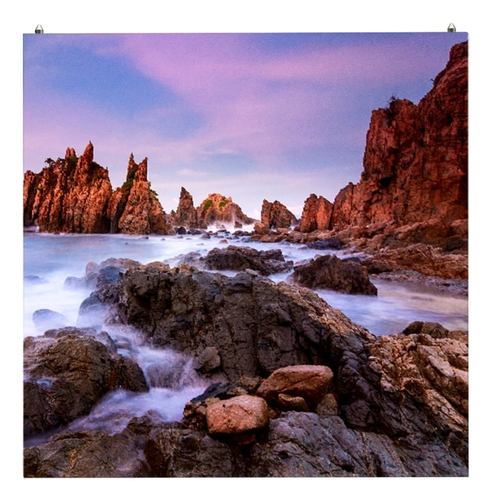

LG LSCA029-RK video wall display LED Indoor
Part number LSCA029-RK
2.97MM 1000NIT 500X1000X65.6
- Pixel Pitch: 2.97mm
- Brightness: 1,000 cd/m²
- Fast Assembly and Easy Maintenance
- Two Cabinet Options
- 90º Corner Option Available
- Manufacturer
- LG
- Part number
- LSCA029-RK
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Overview
Fast Installation
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Easy Maintenance
The LSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.
Two Cabinet Options
The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fits perfectly with customer's demands.
90° Corner Design Available
If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.

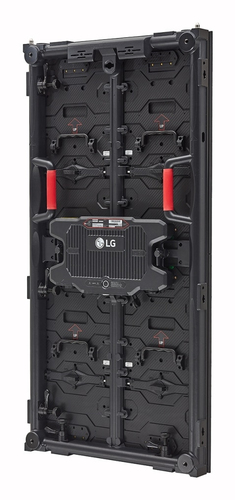

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Compatibility with
LG Software Solutions
Powered by LG’s high performance system controller, the LSCA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 168 x 336 pixels |
| Pixel density | 112.896 ppi |
| Display brightness | 1000 cd/m² |
| Colour temperature (min) | 3200 K |
| Colour temperature (max) | 9300 K |
| Contrast ratio (typical) | 5000:1 |
| Display refresh rates supported | 2880 Hz |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Brightness uniformity | 97 - 97% |
| Colour depth | 14 bit |
| Service life of light source | 100000 h |
| Placement supported | Indoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules included | 4 |
| Frame material | Aluminium |
| International Protection (IP) code | IP30 |
| Power consumption (typical) | 90 W |
|---|---|
| Power consumption (max) | 270 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | -10 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 500 mm |
|---|---|
| Depth | 74.9 mm |
| Height | 1000 mm |
| Weight | 12.5 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
