LG

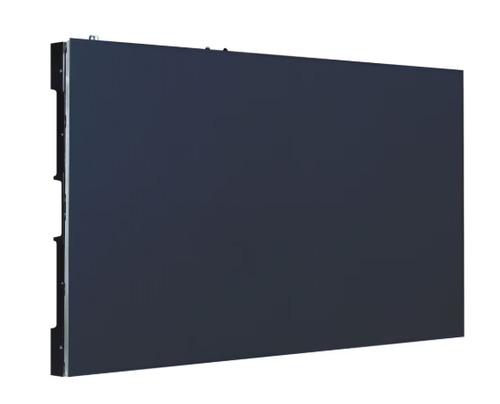

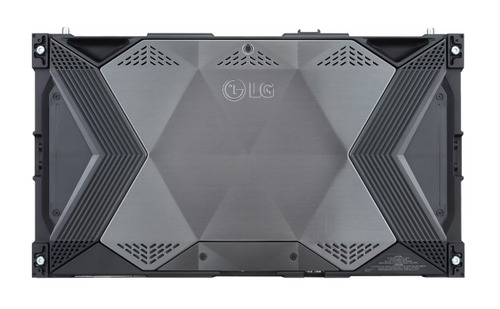

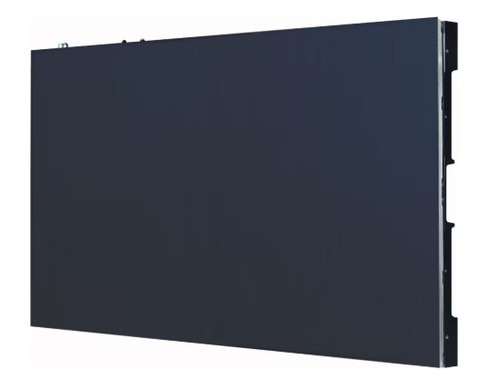

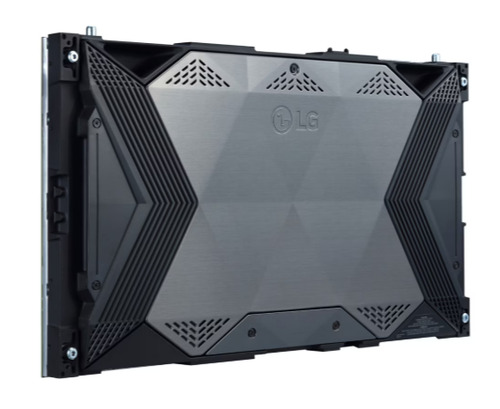

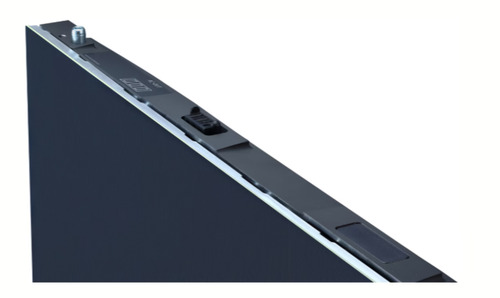

LG LSAB012 Digital signage flat panel LED 800 cd/m² Full HD Black
Part number LSAB012-T12
1.25MM P1600NIT TYP800NIT COB SECONDARY SIGNAL+POWER REDUNDANCY
- Micro LED Display
- Chip on Board Technology
- Pixel Pitch : 1.250 mm
- Brightness : 1,600 nit (Peak.), 800 nit (Max.)
- Contrast Ratio (10 lux) : 100,000 : 1
- Cable-less Signal Transmission & Power Docking
- Manufacturer
- LG
- Part number
- LSAB012-T12
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display brightness | 800 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Contrast ratio (dynamic) | 100000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 1250 x 1250 mm |
| Panel life | 100000 h |
| Native refresh rate | 3840 Hz |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| Purpose | Universal |
|---|---|
| International Protection (IP) code | IP20, IP50 |
| Power consumption (typical) | 50 W |
|---|---|
| Power consumption (max) | 82 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Heat dissipation | 280 BTU/h |
| Display width | 600 mm |
|---|---|
| Display depth | 44.9 mm |
| Display height | 337.5 mm |
| Display weight | 7.2 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 10 - 80 °C |
| Certification | Safety 60950-1, EMC Class B, BS476 Part7 Class1 |
|---|
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
