LG GSPC029-GA.AUSQ video wall display LED Indoor/outdoor
Part number GSPC029-GA.AUSQ
GSPC STANDARD PANEL/CABINET 168X336 5500NIT 500X1000X68
- LED
- 168 x 336 pixels
- 5500 cd/m² 10000:1 3840 Hz 2.98 x 2.98 mm
- Indoor/outdoor Horizontal/Vertical
- 87 W
- Manufacturer
- LG
- Part number
- GSPC029-GA.AUSQ
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Overview
Eye-level Pitch for Outdoor
Unlike traditional large-scale screens that are typically installed at a height for visibility, the GSPC series features a low pixel pitch of 2.98 mm, allowing for installation at eye level and enabling clear image display even on smaller screens.
Enhanced Energy Efficiency
Compared to LG’s traditional model, power consumption has decreased by more than 27%*, based on the same brightness. This means that operating costs can be significantly reduced.
Flexible Installation
The GSPC series offers three sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPC series integrates seamlessly into the installation place and clear content to customers.
Compatibility with LG Software Solutions
When connected with LG's CVGA system controller, the GSPC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 168 x 336 pixels |
| Pixel density | 112.896 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 2.98 x 2.98 mm |
| Display brightness | 5500 cd/m² |
| Colour temperature (min) | 3200 K |
| Colour temperature | 3200 K |
| Contrast ratio (typical) | 10000:1 |
| Native refresh rate | 3840 Hz |
| Display refresh rates supported | 3840 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 14 bit |
| Panel life | 100000 h |
| Number of pixel per module | 84 x 84 |
| Placement supported | Indoor/outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 4 |

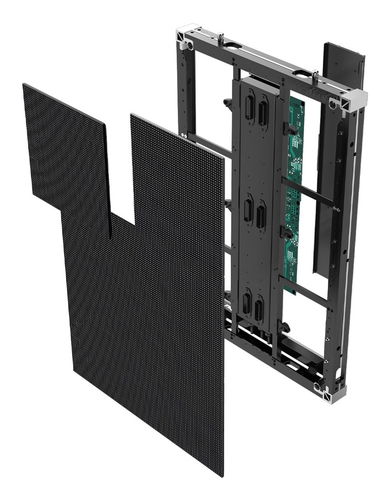

| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP66 |
| Power consumption (typical) | 87 W |
|---|---|
| Power consumption (max) | 260 W |
| AC input voltage | 100-240 V |
| Heat dissipation | 297 BTU/h |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Compliance certificates | CE, CB, ETL, BIS, REACH, RoHS |
|---|
| Width | 500 mm |
|---|---|
| Depth | 68 mm |
| Height | 1000 mm |
| Weight | 16 kg |
| Module width | 25 cm |
| Module height | 25 cm |
| Module weight | 1 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
