LG GSPB039-CA video wall display LED Indoor/outdoor
Part number GSPB039-CA
GSPB SERIES DVLED P3.9 128X128 SINGLE SMD 8000 NIT BRIGHTNESS
- Pixel Pitch : 3.91 mm
- Brightness : 8,000 nit (Max.)
- Service Access : Front and Rear
- IP Rating : IP65 (Front / Rear)
- Manufacturer
- LG
- Part number
- GSPB039-CA
- Condition
- New
- Category
- Accessories › Desk Accessories
- 1GPA category
- Hardware
Overview
Outdoor Signage for Medium-Range Attraction
Engage Passersby with Eye-Catching Displays.
Medium-Range Attraction
Designed for medium-range applications, the GSPB series model excels at drawing attention from a moderate distance. Perfect for shopping malls and low-rise building exteriors, it ensures your message is seen with just a glance upward.
Enhanced Energy Efficiency
Compared to LG’s previous standard model, the brightness has increased by 3,000 nits while maintaining slightly lower power consumption levels. This means that the display is both brighter and more energy-efficient, which can help save on operating costs.
Flexible Installation

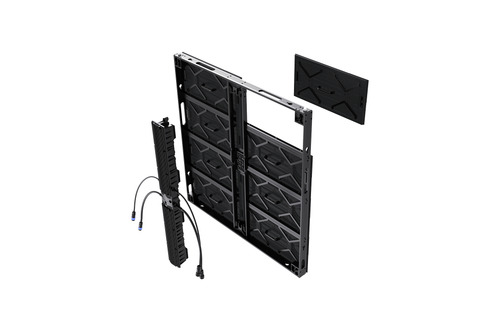

The GSPB series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPB series integrates seamlessly into the space and delivers smooth content to customers.
High Brightness for Outdoor
With a great brightness of 8,000 nits, it clearly delivers content and attracts public attention, which is the suitable display for outdoor visibility.
Compatibility with LG Software Solutions
When connected with LG’s CVCA / CBCA system controller, the GSPB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 256 x 256 pixels |
| Pixel density | 65.536 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 3.91 x 3.91 mm |
| Display brightness | 8000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 20000:1 |
| Native refresh rate | 7680 Hz |
| Display refresh rates supported | 60 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 155° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 16 bit |
| Panel life | 100000 h |
| Number of pixel per module | 128 x 64 |
| Placement supported | Indoor/outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 4 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP65 |
| Power consumption (typical) | 220 W |
|---|---|
| Power consumption (max) | 660 W |
| AC input voltage | 100-240 V |
| Heat dissipation | 2150 BTU/h |
| Operating temperature (T-T) | -30 - 0 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 99% |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ETL, REACH, RoHS |
|---|
| Width | 1000 mm |
|---|---|
| Depth | 91.3 mm |
| Height | 1000 mm |
| Weight | 21 kg |
| Module width | 50 cm |
| Module height | 25 cm |
| Module weight | 1.4 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
