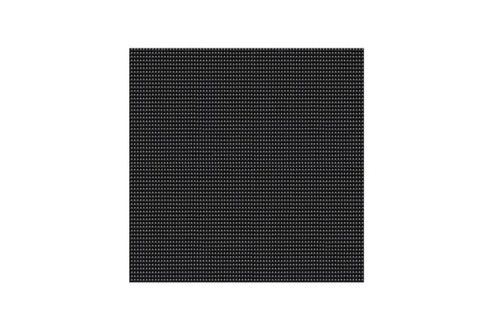

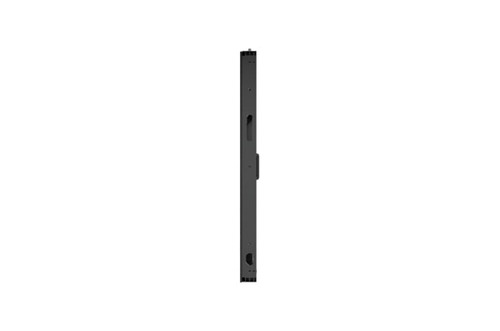

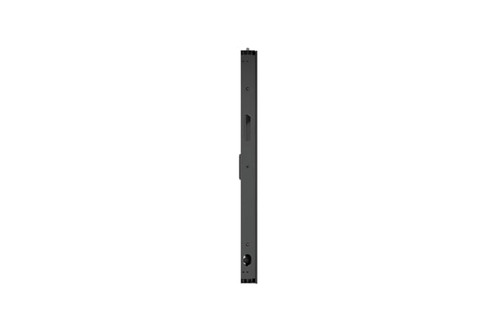

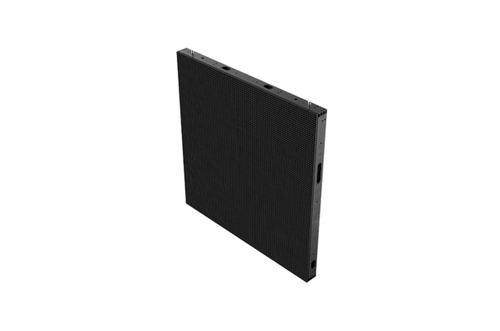

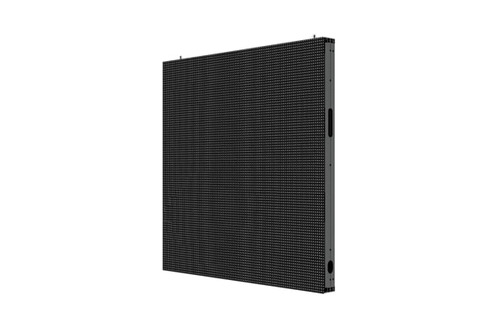

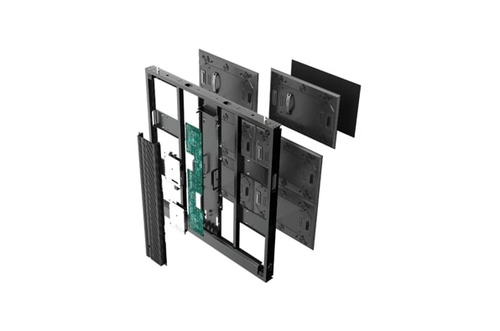

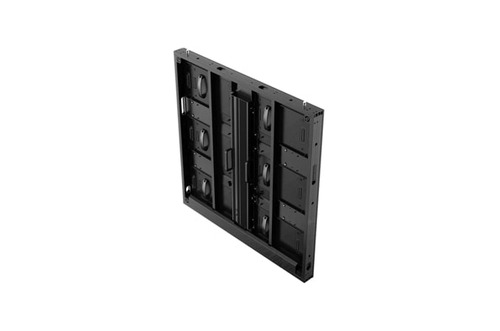

LG GSPA066-GB.AUSQ video wall display LED Outdoor
Part number GSPA066-GB.AUSQ
GSPA HALF W HALF H PANEL/CABINE 96X46 RES 480X320X68 8000NIT
- Pixel Pitch : 6.67 mm
- Brightness : up to 8,000 nits
- Half-width, Half-height
- 90 degree corner cut GSPA066-GBC
- IP Rating : IP66 (Front / Rear)
- Long-Range Visibility
- Manufacturer
- LG
- Part number
- GSPA066-GB.AUSQ
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Overview
Ideal for long-distance visibility, our GSPA models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals.
Compared to LG’s traditional model, power consumption has decreased by more than 21%*, based on the same brightness. This means that operating costs can potentially be reduced.
The GSPA series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPA series integrates seamlessly into the space and delivers smooth content to customers.
Optionally, users can choose among several models, such as P10 / 10,000 nit, P10 / 8,000 nit, P6.6 / 8,000 nit, and P6.6 / 6,000 nit. It can also be optimized for screen time, region, regulations, and power consumption, depending on different environmental conditions. The P10 operates at temperatures up to 140°F and can be reliably installed at altitudes of up to 16,000 feet.
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 72 x 48 pixels |
| Pixel density | 22.5 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 6.67 x 6.67 mm |
| Display brightness | 8000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 15000:1 |
| Native refresh rate | 3840 Hz |
| Display refresh rates supported | 3840 Hz, 50 Hz, 60 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 14 bit |
| Panel life | 100000 h |
| Number of pixel per module | 72 x 48 |
| Placement supported | Outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 1 |
| Frame material | Aluminium |
| Number of modules (vertical) | 1 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP66 |
| Power consumption (typical) | 33 W |
|---|---|
| Power consumption (max) | 100 W |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 90 BTU/h |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Compliance certificates | CB, CE, ETL, Federal Communications Commission (FCC), REACH |
|---|
| Width | 480 mm |
|---|---|
| Depth | 68 mm |
| Height | 320 mm |
| Weight | 5 kg |
| Module width | 48 cm |
| Module height | 32 cm |
| Module weight | 1.65 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
