Products › Displays

LG

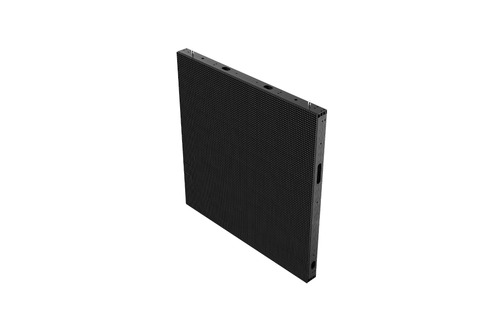

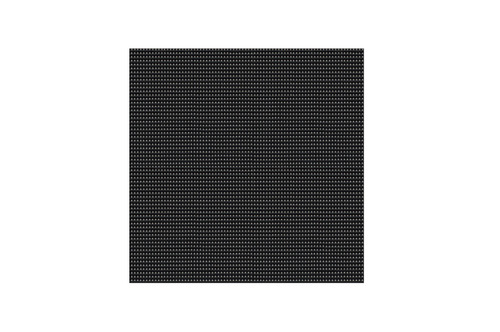

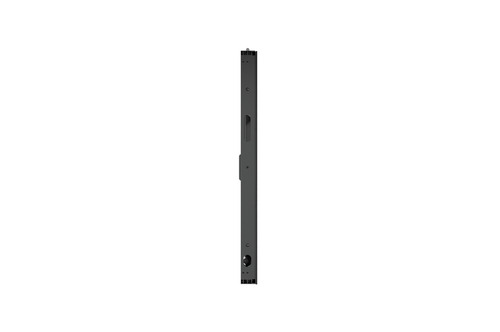

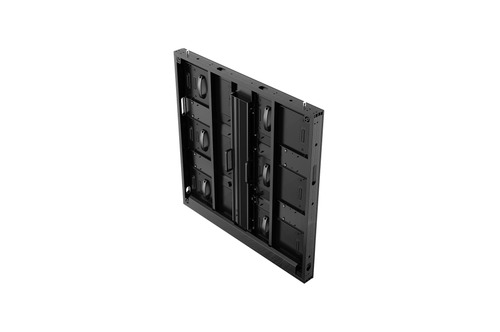

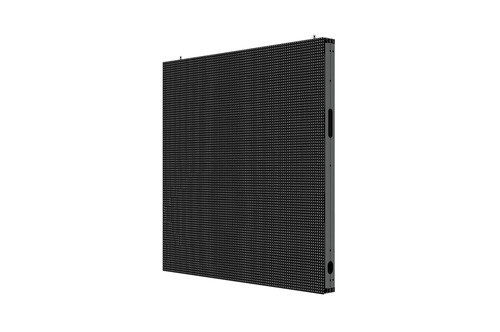

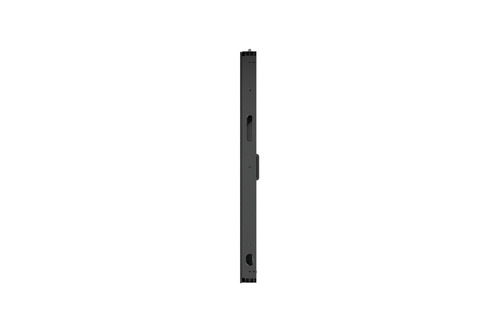

LG GSPA066-GA.AUSQ video wall display LED Outdoor

Part number GSPA066-GA.AUSQ

GSPA STANDARD PANEL/CABINET 138X138 8000NIT 960X960X68 SNGL SMD

  • Pixel Pitch : 6.67 mm
  • Brightness : 8,000 / 6,000 nit
  • IP Rating : IP66 (Front / Rear)
Manufacturer
LG
Part number
GSPA066-GA.AUSQ
Condition
New
Category
Displays › Large Format Displays
1GPA category
Hardware

Overview

Outdoor Signage with Long-Range Visibility

Long-Range Visibility

Ideal for long-distance visibility, our GSPA6.6/10.0 models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals on our outdoor LED signage.

Enhanced Energy Efficiency

Compared to LG’s traditional model, power consumption has decreased by more than 21%*, based on the same brightness. This means that operating costs of Outdoor LED Display are significantly reduced.

Flexible Installation

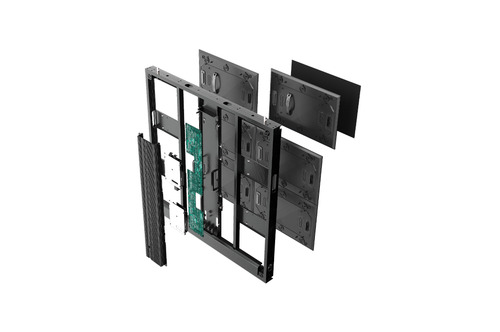

The GSPA series offers two sizes of cabinets, allowing for a big LED Screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPA series integrates seamlessly into the space and delivers smooth content to customers.

High Brightness for Outdoor

Optionally, users can choose among several LED Display models, such as P10 / 10,000 nit, P10 / 8,000 nit, P6.6 / 8,000 nit, and P6.6 / 6,000 nit. It can also be optimized for screen time, region, regulations, and power consumption, depending on different environmental conditions. The P10 operates at temperatures up to 60°C and can be reliably installed at altitudes of up to 5,000 meters.

Compatibility with LG Software Solutions

When connected with LG's CVGA system controller, the GSPA Outdoor LED Signage series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

Specifications

Display
Display technologyLED
Display resolution144 x 144 pixels
Pixel density10 ppi
LED backlighting typeSMD LED
Pixel pitch6.67 x 6.67 mm
Display brightness10000 cd/m²
Colour temperature (min)3200 K
Contrast ratio (typical)11000:1
Native refresh rate3840 Hz
Display refresh rates supported3840 Hz
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro)
Viewing angle, horizontal160°
Viewing angle, vertical140°
Brightness uniformity0 - 97%
Grayscale depth16 bit
Panel life100000 h
Number of pixel per module72 x 48
Design
Placement supportedOutdoor
OrientationHorizontal/Vertical
Number of modules (horizontal)2
Frame materialAluminium
Number of modules (vertical)3
Front maintenanceYes
Rear maintenanceYes
International Protection (IP) codeIP66
Power
Power consumption (typical)193 W
Power consumption (max)580 W
AC input voltage100-240 V
Heat dissipation1583 BTU/h
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)10 - 90%
Technical details
Compliance certificatesCE, CB, ETL, KC, Electromagnetic Compatibility (EMC), REACH, RoHS
Weight & dimensions
Width960 mm
Depth68 mm
Height960 mm
Weight20.5 kg
Module width48 cm
Module height32 cm
Module weight1.65 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
