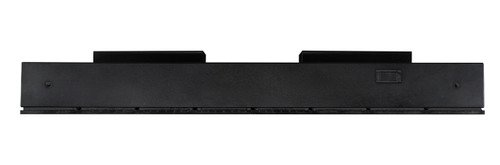

LG GSEH160-GR.AUSQ video wall display LED Outdoor
Part number GSEH160-GR.AUSQ
16.MM 8500NIT 1536X1536X222
- Pixel Pitch: 16.00 mm
- Brightness: 8,500 nit
- Quick Installation
- Easy Maintenance
- Front and Rear Serviceability
- Compatibility with LG Software Solutions
- Manufacturer
- LG
- Part number
- GSEH160-GR.AUSQ
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 96 x 96 pixels |
| Pixel density | 3.906 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 16 x 16 mm |
| Display brightness | 8500 cd/m² |
| Colour temperature (min) | 3500 K |
| Colour temperature (max) | 8500 K |
| Contrast ratio (typical) | 10000:1 |
| Native refresh rate | 3840 Hz |
| Display refresh rates supported | 3840 Hz, 50 Hz, 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 105° |
| Number of pixel per module | 12 x 12 |
| Placement supported | Outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 8 |
| Frame material | Aluminium |
| Number of modules (vertical) | 8 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| Power consumption (typical) | 676 W |
|---|---|
| Power consumption (max) | 1690 W |
| AC input voltage | 100 to 240 |
| Heat dissipation | 2307 BTU/h |
| Compliance certificates | CE, Federal Communications Commission (FCC), ETL |
|---|
| Width | 1536 mm |
|---|---|
| Depth | 227 mm |
| Height | 1536 mm |
| Weight | 104 kg |
| Module width | 19.2 cm |
| Module height | 19.2 cm |
| Module weight | 560 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
