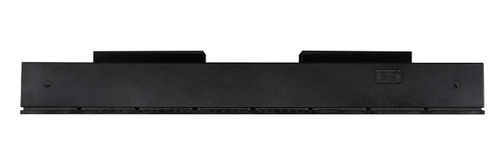

LG GSEH100-GRR.AUSQ video wall display LED Outdoor
Part number GSEH100-GRR.AUSQ
10.67MM 8500NIT 1536X1536X222 RIGHT CUT
- Pixel Pitch: 10.67 mm
- Brightness: 8,500 nit
- Quick Installation
- Easy Maintenance
- Front and Rear Serviceability
- Compatibility with LG Software Solutions
- Manufacturer
- LG
- Part number
- GSEH100-GRR.AUSQ
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 144 x 144 pixels |
| Pixel density | 8.789 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 10.67 x 10.67 mm |
| Display brightness | 8500 cd/m² |
| Colour temperature (min) | 3500 K |
| Colour temperature (max) | 8500 K |
| Contrast ratio (typical) | 8000:1 |
| Native refresh rate | 7680 Hz |
| Display refresh rates supported | 50 Hz, 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Brightness uniformity | 0 - 97% |
| Number of pixel per module | 18 x 18 |
| Placement supported | Outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 8 |
| Frame material | Aluminium |
| Number of modules (vertical) | 8 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| Power consumption (typical) | 724 W |
|---|---|
| Power consumption (max) | 1810 W |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 2471 BTU/h |
| Compliance certificates | CE, Federal Communications Commission (FCC), ETL |
|---|
| Width | 1536 mm |
|---|---|
| Depth | 222 mm |
| Height | 1536 mm |
| Weight | 104 kg |
| Module width | 19.2 cm |
| Module height | 19.2 cm |
| Module weight | 560 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
