LG

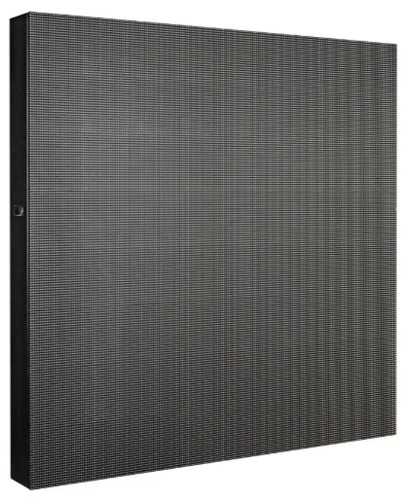

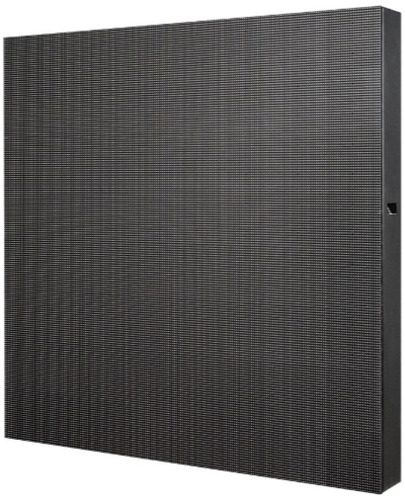

LG GSEH080-GR.AUSQ video wall display LED Indoor/outdoor
Part number GSEH080-GR.AUSQ
8.0MM 8500NIT 1536X1536X222
- Pixel Pitch: 8.00 mm
- Brightness: 8,500 nit
- Quick Installation
- Easy Maintenance
- Front and Rear Serviceability
- Compatibility with LG Software Solutions
- Manufacturer
- LG
- Part number
- GSEH080-GR.AUSQ
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 192 x 192 pixels |
| Pixel density | 15.625 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 8 x 8 mm |
| Display brightness | 8500 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 5000:1 |
| Display refresh rates supported | 60 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 130° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 16 bit |
| Panel life | 100000 h |
| Number of pixel per module | 24 x 24 |
| Placement supported | Indoor/outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 8 |
| Frame material | Aluminium |
| Number of modules (vertical) | 8 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP54, IP65 |
| Power consumption (typical) | 708 W |
|---|---|
| Power consumption (max) | 1770 W |
| AC input voltage | 100-240 V |
| Heat dissipation | 6040 BTU/h |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Compliance certificates | CE, Federal Communications Commission (FCC), ETL, REACH, RoHS |
|---|
| Width | 1536 mm |
|---|---|
| Depth | 222 mm |
| Height | 1536 mm |
| Weight | 104 kg |
| Module width | 19.2 cm |
| Module height | 19.2 cm |
| Module weight | 570 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
