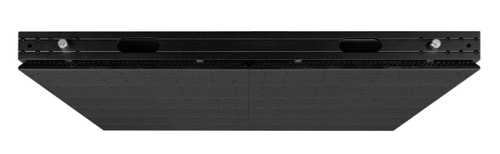

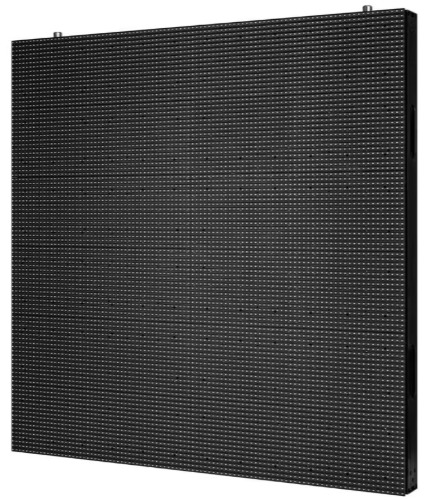

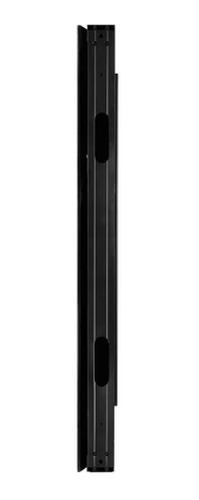

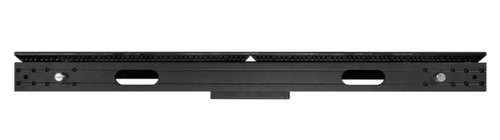

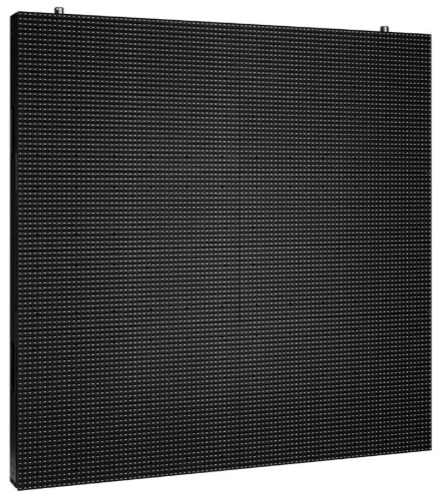

LG GSEG100-GNL.AUSQ video wall display LED Indoor/outdoor
Part number GSEG100-GNL.AUSQ
10.42MM 6000NIT 1000X1000X105 LEFT CUT
- Pixel Pitch : 10.42 mm
- Brightness : 6,000 nit (-GN) / 7,000 nit (-GR) / 10,000 nit (-GS)
- Service Access : Front and Rear
- IP Rating : IP66
- Available for Curved Screen
- Easy Installation and Maintenance
- Manufacturer
- LG
- Part number
- GSEG100-GNL.AUSQ
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 96 x 96 pixels |
| Pixel density | 9.216 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 10.42 x 10.42 mm |
| Display brightness | 6000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 8000:1 |
| Native refresh rate | 7680 Hz |
| Display refresh rates supported | 60 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 130° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 16 bit |
| Panel life | 100000 h |
| Number of pixel per module | 48 x 32 |
| Placement supported | Indoor/outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 3 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP66 |
| Power consumption (typical) | 272 W |
|---|---|
| Power consumption (max) | 680 W |
| AC input voltage | 100-240 V |
| Heat dissipation | 2321 BTU/h |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Compliance certificates | CE, Federal Communications Commission (FCC), ETL, REACH, RoHS |
|---|
| Width | 1000 mm |
|---|---|
| Depth | 105 mm |
| Height | 1000 mm |
| Weight | 25 kg |
| Module width | 50 cm |
| Module height | 33.3 cm |
| Module weight | 2.05 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
