LG

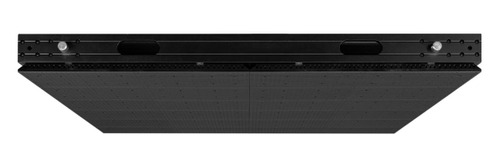

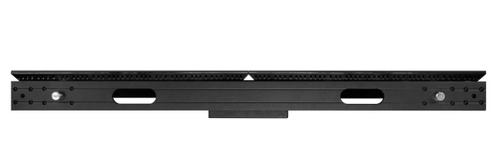

LG GSEG083-GR.AUSQ video wall display LED Outdoor
Part number GSEG083-GR.AUSQ
8.33MM 7000NIT 1000X1000X105
- Pixel Pitch : 8.33 mm
- Brightness : 6,000 nit (-GN) / 7,000 nit (-GR)
- Service Access : Front and Rear
- IP Rating : IP66
- Available for Curved Screen
- Easy Installation and Maintenance
- Manufacturer
- LG
- Part number
- GSEG083-GR.AUSQ
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 120 x 120 pixels |
| Pixel density | 14.4 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 8.33 x 8.33 mm |
| Display brightness | 7000 cd/m² |
| Colour temperature (min) | 3200 K |
| Colour temperature (max) | 9300 K |
| Contrast ratio (typical) | 7000:1 |
| Native refresh rate | 7680 Hz |
| Display refresh rates supported | 50 Hz, 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 120° |
| Brightness uniformity | 0 - 97% |
| Number of pixel per module | 60 x 40 |
| Placement supported | Outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 3 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| Power consumption (typical) | 260 W |
|---|---|
| Power consumption (max) | 650 W |
| AC input voltage | 100 to 240 |
| Heat dissipation | 2218 BTU/h |
| Compliance certificates | CE, Federal Communications Commission (FCC), ETL |
|---|
| Width | 1000 mm |
|---|---|
| Depth | 105 mm |
| Height | 1000 mm |
| Weight | 25 kg |
| Module width | 50 cm |
| Module height | 33.3 cm |
| Module weight | 2.05 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
