LG GSEG060-GNR.AUSQ
View 1 View 2 View 3 View 4 View 5
LG

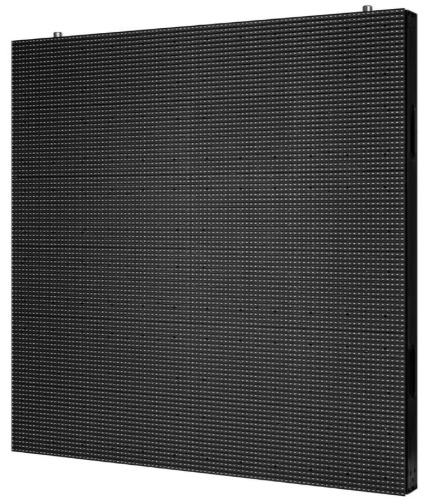

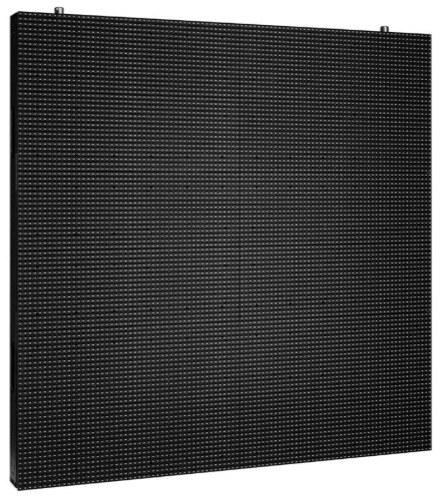

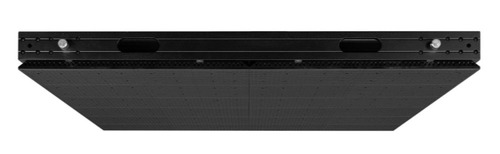

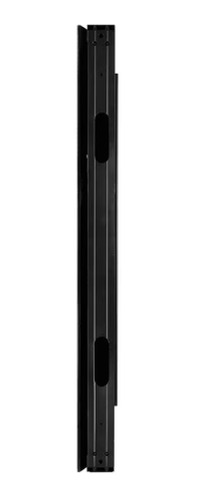

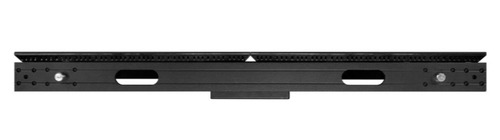

LG GSEG060-GNR.AUSQ video wall display LED Indoor/outdoor

Part number GSEG060-GNR.AUSQ

5.95MM 6000NIT 1000X1000X105 RIGHT CUT

  • Pixel Pitch : 5.95 mm
  • Brightness : 6,000 nit (-GN) / 7,000 nit (-GR)
  • Service Access : Front and Rear
  • IP Rating : IP66
  • Available for Curved Screen
  • Easy Installation and Maintenance
Manufacturer
LG
Part number
GSEG060-GNR.AUSQ
Condition
New
Category
Displays › Large Format Displays
1GPA category
Hardware

Specifications

Display
Display technologyLED
Display resolution168 x 168 pixels
Pixel density28.224 ppi
LED backlighting typeSMD LED
Pixel pitch5.95 x 5.95 mm
Display brightness6000 cd/m²
Colour temperature (min)3200 K
Contrast ratio (typical)4000:1
Display refresh rates supported60 Hz
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro)
Viewing angle, horizontal160°
Viewing angle, vertical115°
Brightness uniformity0 - 97%
Grayscale depth16 bit
Panel life100000 h
Number of pixel per module84 x 56
Design
Placement supportedIndoor/outdoor
OrientationHorizontal/Vertical
Number of modules (horizontal)2
Frame materialAluminium
Number of modules (vertical)3
Front maintenanceYes
Rear maintenanceYes
International Protection (IP) codeIP66
Power
Power consumption (typical)272 W
Power consumption (max)680 W
AC input voltage100-240 V
Heat dissipation2321 BTU/h
Operational conditions
Operating temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)0 - 90%
Technical details
Compliance certificatesCE, Federal Communications Commission (FCC), ETL, REACH, RoHS
Weight & dimensions
Width1000 mm
Depth105 mm
Height1000 mm
Weight25 kg
Module width50 cm
Module height33.3 cm
Module weight2.05 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
