LG GSED025-GD.AUSQ
LG

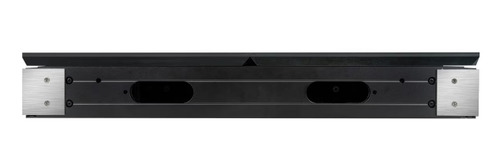

LG GSED025-GD.AUSQ video wall display LED Indoor/outdoor

Part number GSED025-GD.AUSQ

2.5MM 4000NIT 480X540X80 0

  • Pixel Pitch: 2.50 mm
  • Brightness: 4,000 nit
  • Eye-level Pitch for Outdoor
  • Design for Durability and Easy Maintenance
  • Front and Rear Serviceability
  • IP Rating: IP66
Manufacturer
LG
Part number
GSED025-GD.AUSQ
Condition
New
Category
Displays › Direct View Displays
1GPA category
Hardware

Specifications

Display
Display technologyLED
Display resolution192 x 216 pixels
Pixel density160 ppi
LED backlighting typeSMD LED
Pixel pitch2.5 x 2.5 mm
Display brightness4000 cd/m²
Colour temperature (min)3500 K
Contrast ratio (typical)4000:1
Native refresh rate3840 Hz
Display refresh rates supported3840 Hz
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro)
Viewing angle, horizontal160°
Viewing angle, vertical140°
Brightness uniformity0 - 97%
Grayscale depth16 bit
Panel life100000 h
Number of pixel per module96 x 108
Design
Placement supportedIndoor/outdoor
OrientationHorizontal/Vertical
Number of modules (horizontal)2
Frame materialAluminium
Number of modules (vertical)2
Front maintenanceYes
Rear maintenanceYes
International Protection (IP) codeIP65
Power
Power consumption (typical)72 W
Power consumption (max)180 W
AC input voltage100-240 V
Heat dissipation614 BTU/h
Operational conditions
Operating temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)0 - 90%
Technical details
Compliance certificatesCE, Federal Communications Commission (FCC), ETL, REACH, RoHS
Weight & dimensions
Width480 mm
Depth70 mm
Height540 mm
Weight8.5 kg
Module width24 cm
Module height27 cm
Module weight1.05 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
