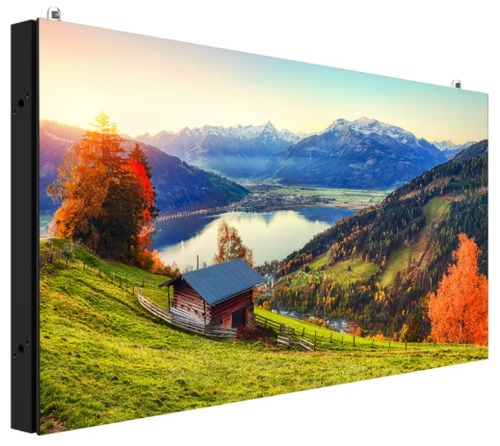

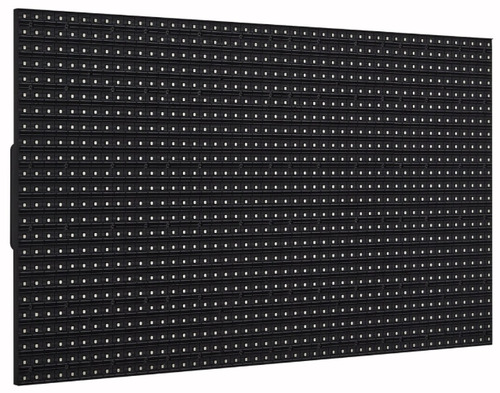

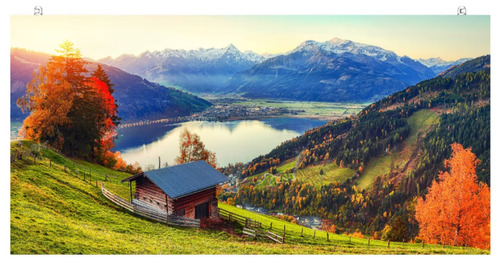

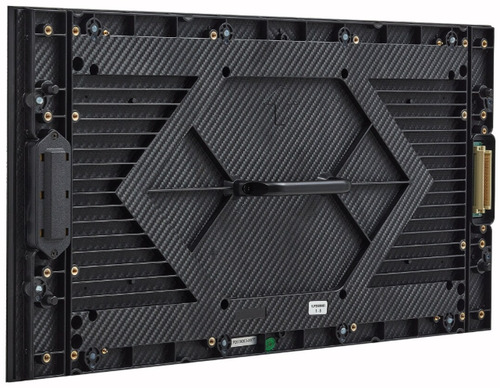

LG GSCD100-GN.AUSQ video wall display LED Outdoor
Part number GSCD100-GN.AUSQ
10.41MM 5000NIT 3IN1 1000X1000X86MM
- Pixel Pitch: 10.41mm
- Brightness: 5,000/7,000 cd/m² (GN/GR Series)
- Lightweight Design
- IP65 Weatherproof Design
- 90º Corner Option Available
- Manufacturer
- LG
- Part number
- GSCD100-GN.AUSQ
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 96 x 96 pixels |
| Pixel density | 9.216 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 10.41 x 10.41 mm |
| Display brightness | 5000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 10000:1 |
| Native refresh rate | 3840 Hz |
| Display refresh rates supported | 3840 Hz, 50 Hz, 60 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 136° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 16 bit |
| Panel life | 100000 h |
| Number of pixel per module | 48 x 24 |
| Placement supported | Outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 4 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP65 |
| Power consumption (typical) | 216 W |
|---|---|
| Power consumption (max) | 650 W |
| AC input voltage | 100 to 240 |
| Heat dissipation | 2217.8 BTU/h |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 99% |
| Compliance certificates | CE, ETL, Federal Communications Commission (FCC), RoHS |
|---|
| Width | 1000 mm |
|---|---|
| Depth | 85.1 mm |
| Height | 1000 mm |
| Weight | 19 kg |
| Module width | 50 cm |
| Module height | 25 cm |
| Module weight | 1.3 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
