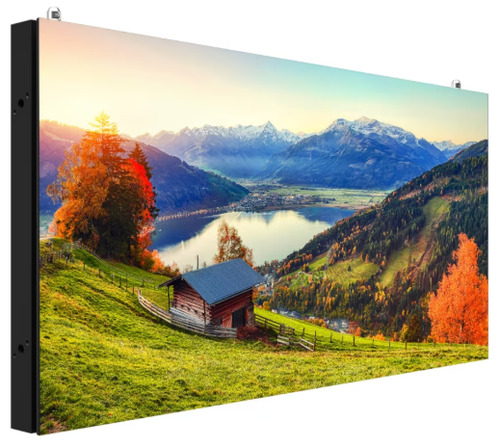

LG GSCD069-GR.AUSQ video wall display LED Outdoor
Part number GSCD069-GR.AUSQ
6.94MM 7000NIT 1000X1000X85.1MM
- Pixel Pitch: 6.94mm
- Brightness: 5,000 cd/m²
- Lightweight Design
- IP65 Weatherproof Design
- 90º Corner Option Available
- Manufacturer
- LG
- Part number
- GSCD069-GR.AUSQ
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Overview
GSCD Ultra Light Series
With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.
High Brightness
With a great brightness of 7,000 nits*, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility.
Lightweight Design
The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load.
Easy Maintenance
The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance.

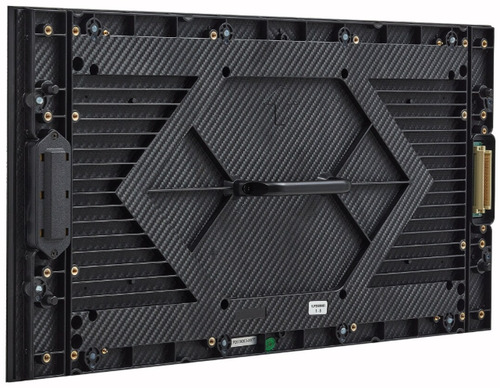

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment.
90° Corner Design Available
If you add a 90° corner option*, the GSCD series can deliver content effectively even when installed on the corners.
IP Rated Weatherproof Design
The front and back of the cabinet are IP65 certified, allowing stable operation less affected by weather.
Compatibility with LG Software Solutions
Powered by LG’s high performance system controller, the GSCD series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 144 x 144 pixels |
| Pixel density | 20.736 ppi |
| Pixel pitch | 6.94 x 6.94 mm |
| Display brightness | 5000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 6000:1 |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 134° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 14 bit |
| Panel life | 100 h |
| Number of pixel per module | 72 x 36 |
| Placement supported | Outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 4 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP65 |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 99% |
| Compliance certificates | RoHS |
|---|
| Width | 1000 mm |
|---|---|
| Depth | 84.4 mm |
| Height | 1000 mm |
| Weight | 18.5 kg |
| Module width | 50 cm |
| Module height | 25 cm |
| Module weight | 1.3 kg |
