LG

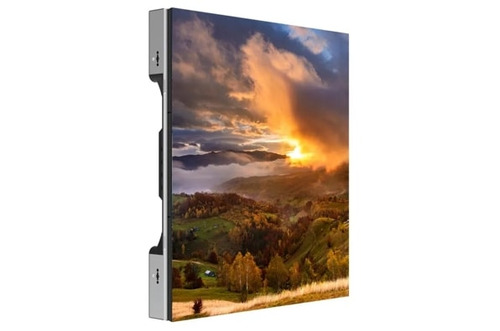

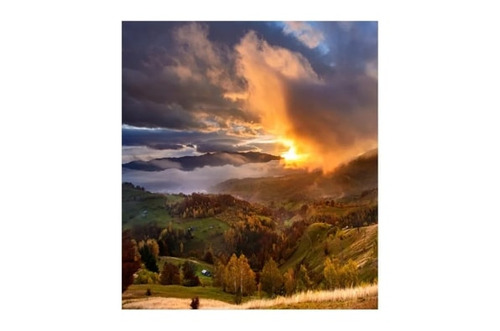

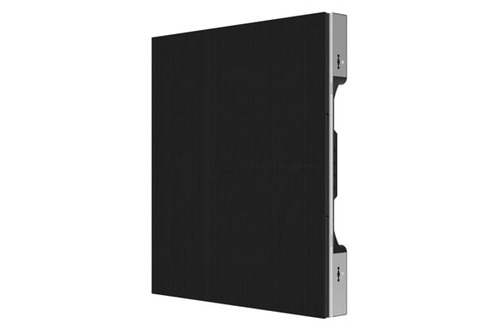

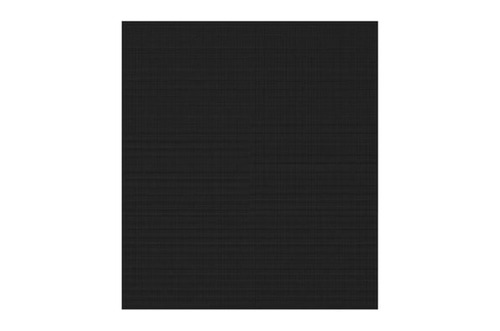

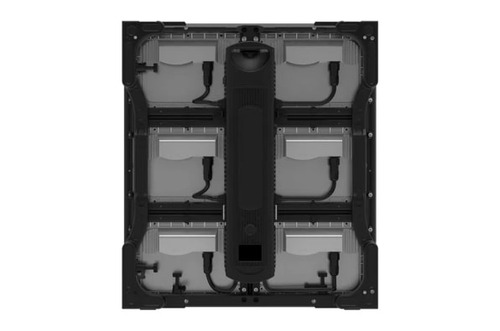

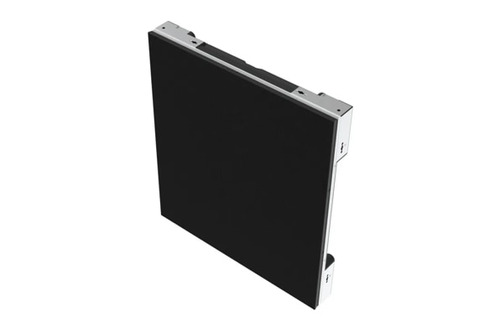

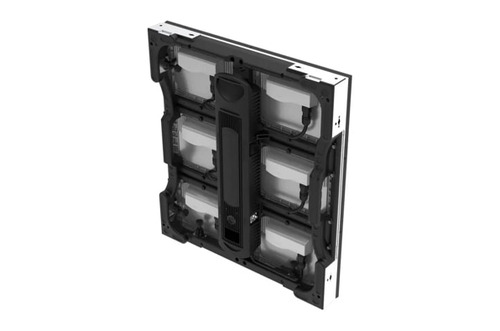

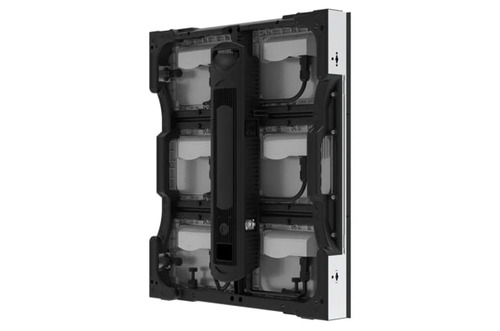

LG GSCC080-GN video wall display LED Indoor/outdoor
Part number GSCC080-GN
8MM 5000NIT 3IN1 640X720X90
- Pixel Pitch: 8.00mm
- Brightness: 5,000nits
- Fast Assembly and Easy Maintenance
- IP65 Weatherproof Design
- 90º Corner Option Available
- Rental/Staging/Temporary deployments
- Manufacturer
- LG
- Part number
- GSCC080-GN
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 80 x 90 pixels |
| Pixel density | 15.625 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 8 x 8 mm |
| Display brightness | 5000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 6700:1 |
| Native refresh rate | 3840 Hz |
| Display refresh rates supported | 3840 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 115° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 14 bit |
| Panel life | 100000 h |
| Number of pixel per module | 40 x 30 |
| Placement supported | Indoor/outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Aluminium |
| Number of modules (vertical) | 3 |
| International Protection (IP) code | IP65 |
| Power consumption (typical) | 110 W |
|---|---|
| Power consumption (max) | 330 W |
| AC input voltage | 100-240 V |
| Heat dissipation | 1125.96 BTU/h |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 99% |
| Compliance certificates | CE, ETL, RoHS |
|---|
| Width | 640 mm |
|---|---|
| Depth | 114.9 mm |
| Height | 720 mm |
| Weight | 17 kg |
| Module width | 32 cm |
| Module height | 24 cm |
| Module weight | 1.3 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
