LG

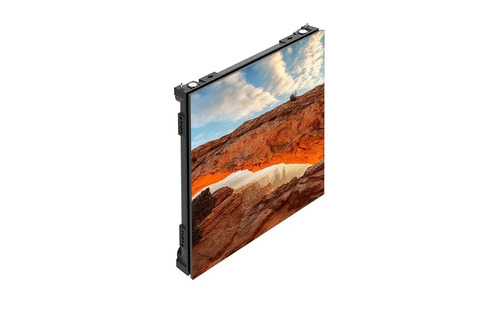

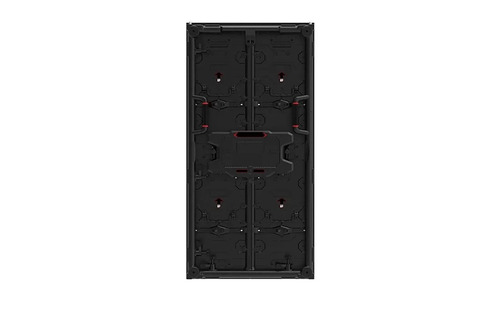

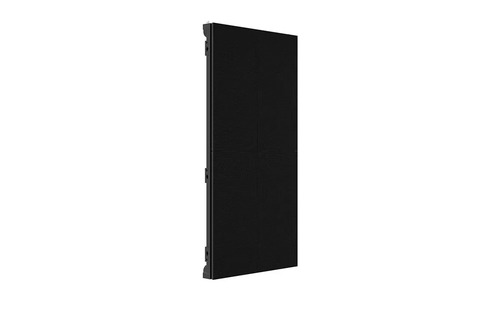

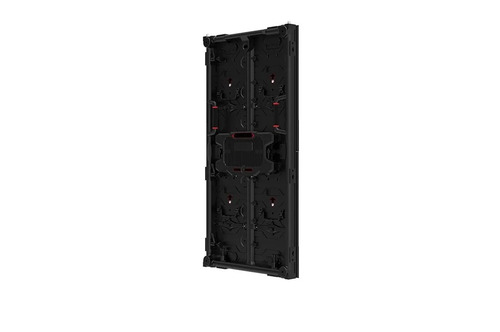

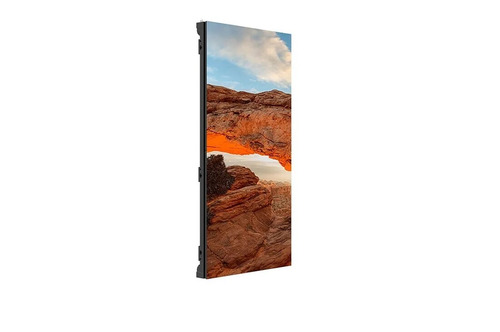

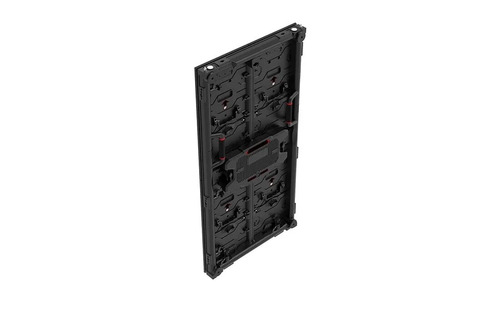

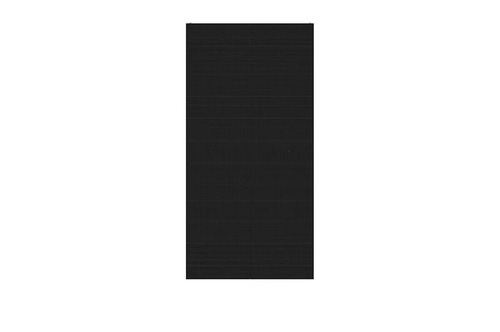

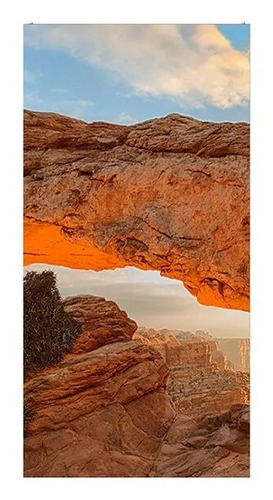

LG GSCA039-GN video wall display LED Indoor/outdoor
Part number GSCA039-GN
3.91MM 5000NIT 3IN1 500X1000X68
- Pixel Pitch: 3.91mm
- Brightness: 5,000 cd/m²
- Fast Assembly and Easy Maintenance
- Two Cabinet Options
- IP65 Weatherproof Design
- 90º Corner Option Available
- Manufacturer
- LG
- Part number
- GSCA039-GN
- Condition
- New
- Category
- Displays › Direct View Displays
- 1GPA category
- Hardware
Specifications
| Display technology | LED |
|---|---|
| Display resolution | 128 x 256 pixels |
| Pixel density | 65.536 ppi |
| LED backlighting type | SMD LED |
| Pixel pitch | 3.91 x 3.91 mm |
| Display brightness | 5000 cd/m² |
| Colour temperature (min) | 3200 K |
| Contrast ratio (typical) | 6000:1 |
| Native refresh rate | 3840 Hz |
| Display refresh rates supported | 3840 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 155° |
| Brightness uniformity | 0 - 97% |
| Grayscale depth | 14 bit |
| Panel life | 100000 h |
| Number of pixel per module | 64 x 128 |
| Placement supported | Indoor/outdoor |
|---|---|
| Orientation | Horizontal/Vertical |
| Number of modules (horizontal) | 2 |
| Frame material | Metal |
| Number of modules (vertical) | 2 |
| Front maintenance | Yes |
| Rear maintenance | Yes |
| International Protection (IP) code | IP65 |
| HDMI ports quantity | 3 |
|---|---|
| DisplayPorts quantity | 1 |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| IR input ports quantity | 1 |
| Power consumption (typical) | 100 W |
|---|---|
| Power consumption (max) | 300 W |
| AC input voltage | 100-240 V |
| Heat dissipation | 1023.6 BTU/h |
| Operating temperature (T-T) | -30 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 99% |
| Compliance certificates | CE, ETL, Federal Communications Commission (FCC), KC, REACH, RoHS |
|---|
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 18 W |
| Width | 500 mm |
|---|---|
| Depth | 66 mm |
| Height | 1000 mm |
| Weight | 12.5 kg |
| Module width | 25 cm |
| Module height | 50 cm |
| Module weight | 1.4 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
