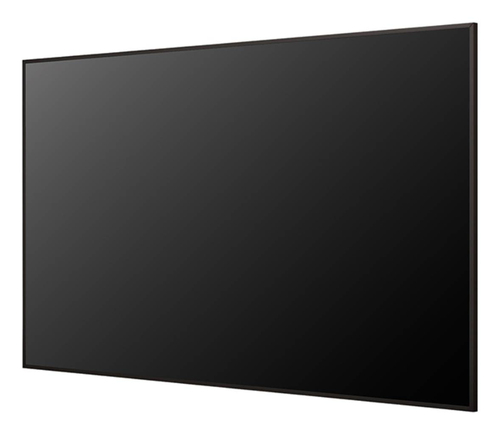

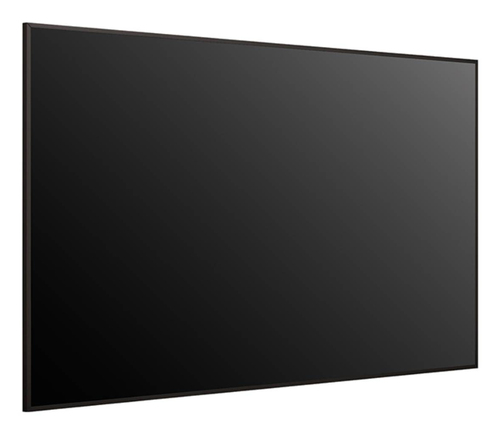

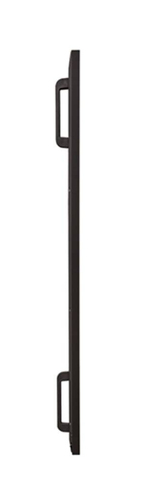

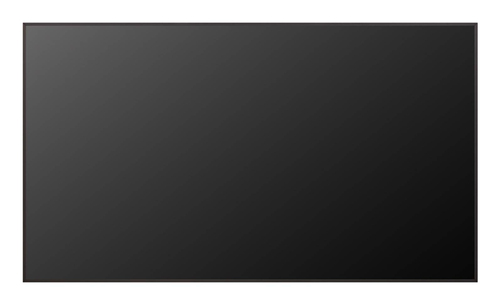

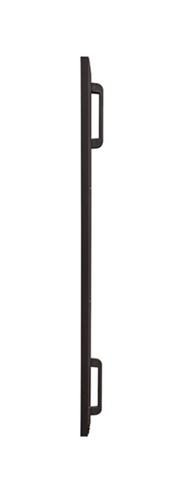

LG 86UH5Q-E Signage Display Digital signage flat panel 2.18 m (86") Wi-Fi 700 cd/m² 4K Ultra HD Black WebOS 24/7
Part number 86UH5Q-E
86IN LCD 3840X2160 4K 24/7 MNTR HDMI DP WEBOS8.0 500NIT LAND/PORT
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 13.4 mm (Even)
- webOS Smart Platform
- LG Shield
- Manufacturer
- LG
- Part number
- 86UH5Q-E
- Condition
- New
- Category
- Displays › Touchscreen Monitors
- 1GPA category
- Hardware
Overview
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
| Panel type | ADS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 700 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Rated lifetime | 50000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 3 |
|---|---|
| HDMI version | 2.2/1.4 |
| HDMI input ports quantity | 3 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | Mini-USB A |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor/outdoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Purpose | Commercial |
|---|---|
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English, French, German, Spanish, Italian, Korean, Simplified Chinese, Traditional Chinese, Portuguese, Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Dutch, Czech, Greek, Turkish, Arabic |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X |
| Screen sharing | Yes |
| webRTC support | Yes |
| Power consumption (typical) | 205 W |
|---|---|
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 297 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Heat generation (typical) | 699 BTU/h |
| Heat generation (max) | 1013 BTU/h |
| Internal memory | 16 GB |
|---|---|
| Operating system installed | WebOS |
| Operating system version | 8.0 |
| Display width | 1928.8 mm |
|---|---|
| Display depth | 29.7 mm |
| Display height | 1099.8 mm |
| Display weight | 53 kg |
| Package width | 2100 mm |
|---|---|
| Package depth | 253 mm |
| Package height | 1250 mm |
| Package weight | 66.7 kg |
| Remote control included | Yes |
|---|---|
| Cables included | Power |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Gyroscope | Yes |
|---|---|
| Temperature sensor | Yes |
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | Yes |
| Wall mountable | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
