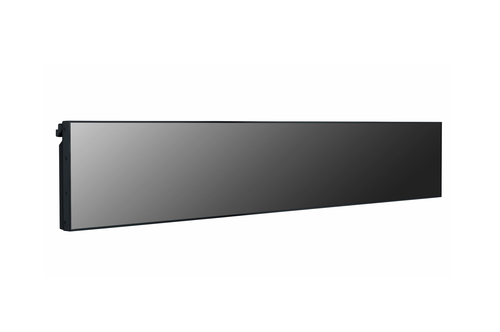

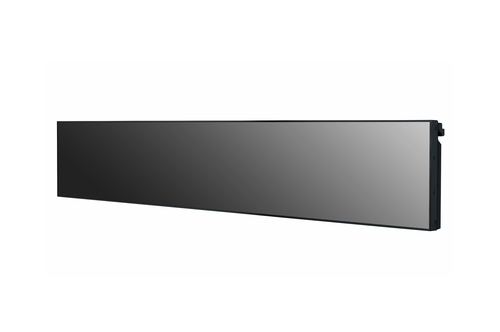

LG 86BH5F-M Signage Display Digital signage flat panel 2.18 m (86") LCD Wi-Fi 500 cd/m² Black WebOS 24/7
Part number 86BH5F-M
86IN LCD STRETCH MNTR 58:9 500NIT 24/7 LAND/PORT HDMI DP
- Brightness(Typ.) : 500 cd/m²
- Aspect Ratio: 58:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 81.7mm

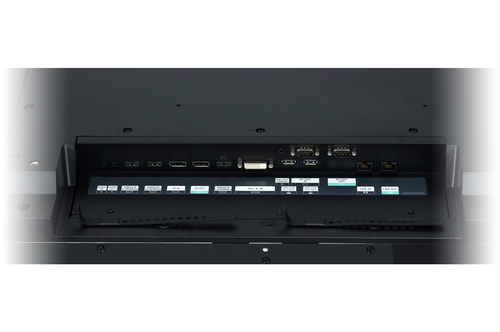

- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
- Manufacturer
- LG
- Part number
- 86BH5F-M
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Overview
58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Specifications
| Panel type | IPS |
|---|---|
| LED backlight | No |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 600 pixels |
| Display brightness | 500 cd/m² |
| HD type | Not supported |
| Touchscreen | No |
| Response time | 8 ms |
| Contrast ratio (typical) | 1100:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Haze rate | 3% |
| RGB colour space | NTSC |
| HDMI ports quantity | 3 |
|---|---|
| HDMI version | 2.2 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Built-in speaker(s) | No |
|---|
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 200 mm |
| Bezel width (bottom) | 5.9 mm |
| Bezel width (side) | 4.4 mm |
| Bezel width (top) | 5.9 mm |
| Purpose | Retail |
|---|---|
| Digital signal format system | Not supported |
| On Screen Display (OSD) | No |
| Operating hours (hours/days) | 24/7 |
| Power consumption (typical) | 220 W |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 143 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Heat dissipation | 751 BTU/h |
| Energy efficiency scale | A to G |
| Computer system | Yes |
|---|---|
| Internal memory | 8 GB |
| Operating system installed | WebOS |
| Width | 2158.3 mm |
|---|---|
| Depth | 81.7 mm |
| Height | 348.5 mm |
| Weight | 20.5 kg |
| Remote control included | Yes |
|---|---|
| Cables included | AC, DisplayPort, IR, IR sensor |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Harmonized System (HS) code | 85285210 |
|---|
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | Yes |
| Special features | CB, NRTL, FCC Class "A", CE, KC, |
|---|---|
| Sustainability certificates | ErP |
| Warranty period | 2 year(s) |
| Built-in microphone | No |
|---|---|
| Height adjustment | No |
| Built-in camera | No |
