LG 75XF3P-B Signage Display Digital signage flat panel 190.5 cm (75") 3000 cd/m² 4K Ultra HD Black
Part number 75XF3P-B
75 IPS+M PANEL,HDMI IN ((2), HDMI1/2 : HDCP 2.2), DP IN (HDCP1.3), DVI-D IN, AUD

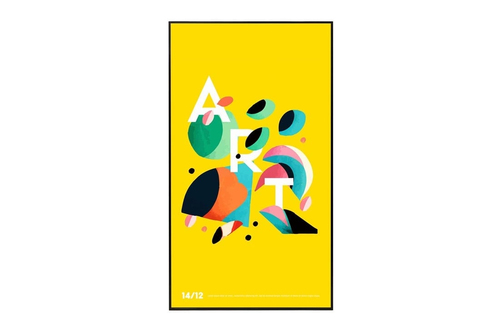

- Portrait / Landscape
- Slim Design
- Conformal Coating
- Auto Brightness Control
- Manufacturer
- LG
- Part number
- 75XF3P-B
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Overview
Customizable Open-frame Display for Smart Effciency
Open-frame Outdoor Display
LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the freedom to tailor the display to your exact preferences.
High Visibility Under
Strong Sunlight
With outstanding high brightness of 3,000 nits (Typ.), the XF3P outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.
Optimized Design for Double-sided Display
The XF3P, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient double-sided display.
Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
Wide Range of Operating Temperature
The XF3P can be used under a wide range of operating temperature from 0℃ to 50℃.
Conformal Coating

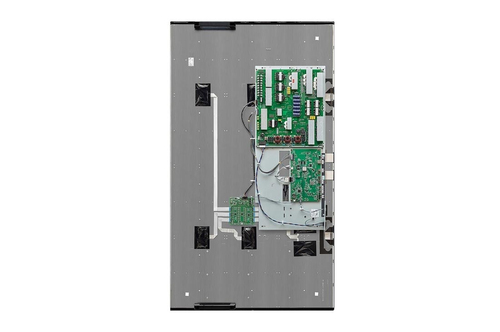

Conformal Coating protects the circuit board and power board against dust, iron powder, humidity, etc.
Installation Guide for a Customized Casing
LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.
Web Monitoring
The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Professional Content Partners
Pairing the XF3P with LG SW solutions would enhance its utilization.
Specifications
| Panel type | IPS |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 3000 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life | 50000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 3% |
| HDMI ports quantity | 2 |
|---|---|
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Product design | Digital signage flat panel |
|---|---|
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Bezel colour | black |
| Purpose | Commercial |
|---|---|
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 22 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| HDCP | Yes |
| HDCP version | 1.3 |
| Power consumption (typical) | 745 W |
|---|---|
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 775 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Heat dissipation | 2.644 BTU/h |
| Computer system | Yes |
|---|---|
| Computer system type | System on Chip (SoC) |
| Processor cores | 2 |
| Internal memory | 8 GB |
| Display width | 1675.2 mm |
|---|---|
| Display depth | 114.6 mm |
| Display height | 953.6 mm |
| Display weight | 32.7 kg |
| Package width | 1816 mm |
|---|---|
| Package depth | 285 mm |
| Package height | 1106 mm |
| Package weight | 43 kg |
| Remote control included | Yes |
|---|---|
| Cables included | HDMI, Power |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Certification | CB / NRTL, ErP, FCC Class "A" / CE / KC / VCCI |
|---|
| Ethernet LAN | Yes |
|---|
| Suitable for indoor use | Yes |
|---|
| Sustainability certificates | ErP |
|---|---|
| Compliance certificates | CB, CE, KC, VCCI |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
