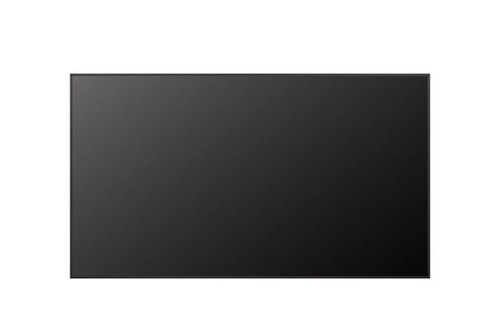

LG 65UH5Q-G Signage Display Digital signage flat panel 165.1 cm (65") LCD 500 cd/m² 4K Ultra HD Black Built-in processor WebOS 24/7

Part number 65UH5Q-G

65 STANDARD (UHD),ADSPANEL TECHNOLOGY,3840 X 2160 (UHD),500NIT (TYP.),OPERATION

Superb picture quality with 3,840 × 2,160 (Ultra HD) resolution
Simplify installation and design with slim and balanced bevels, both vertical and horizontal
Perform multiple tasks without a separate media player using the LG webOS platform
LG Shield employs a five- tiered defense system, encompassing server, application, operating system, system, and hardware

Manufacturer: LG
Part number: 65UH5Q-G
Condition: New
Category: Displays › Large Format Displays
1GPA category: Hardware

Overview

Colors and detail are breathtaking and vivid with the UHD 4K resolution. Paired with a wide viewing angle, every view is just as exquisite.

The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation.

Specifications

Display
LED backlight	Yes
LED backlighting type	Edge-LED
Display diagonal	165.1 cm (65")
Display technology	LCD
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Rated lifetime	50000 h
Native refresh rate	60 Hz
Haze rate	25%
Colour gamut	95%

Ports & interfaces
HDMI ports quantity	3
DVI port	No
USB port	Yes
USB ports quantity	2
USB version	2.0
USB connector type	USB Type-A
Ethernet LAN (RJ-45) ports	1
RS-232C	Yes
RF input	1

Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W

Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
VESA mounting	Yes

Performance
Purpose	Commercial
Picture-in-Picture	Yes
Operating hours (hours/days)	24/7
HDCP	Yes
Smart modes	Energy saving
HDCP version	1.4/2.2

Power
Power consumption (typical)	130 W
Power consumption (standby)	0.5 W
Power consumption (max)	184 W
Power consumption (economy mode)	91 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Heat generation (typical)	444 BTU/h
Heat generation (max)	599 BTU/h

Computer system
Computer system	Yes
Built-in processor	Yes
Operating system installed	WebOS
Operating system version	webOS 8.0

Weight & dimensions
Display width	1459 mm
Display depth	29.7 mm
Display height	835 mm
Display weight	21.1 kg

Packaging data
Package width	1580 mm
Package depth	172 mm
Package height	950 mm
Package weight	27 kg

Packaging content
Remote control included	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%

Brand-specific features
LG technologies (AV/TV)	Gapless Playback, Control Manager, Local Network Sync, Status Mailing, No Signal Image, Auto Set ID, ISM Method, Group Manager, Booting Logo Image, Local Contents Scheduling

Sensors
Temperature sensor	Yes

Network
Ethernet LAN	Yes
Wi-Fi	No
Security algorithms	SNMP

Technical details
Internal memory	16000 MB
Compliance certificates	Federal Communications Commission (FCC), TAA

Other features
Built-in brightness sensor	Yes
Bezel width	1.14 cm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
