LG

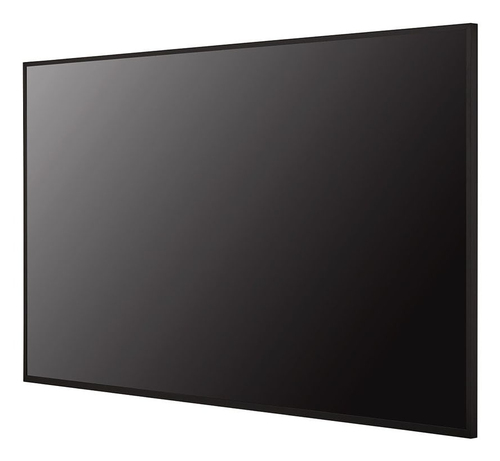

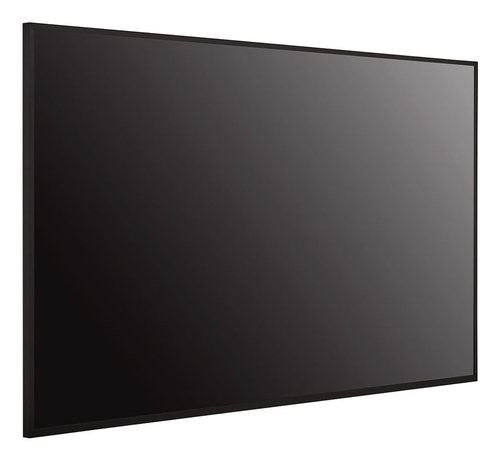

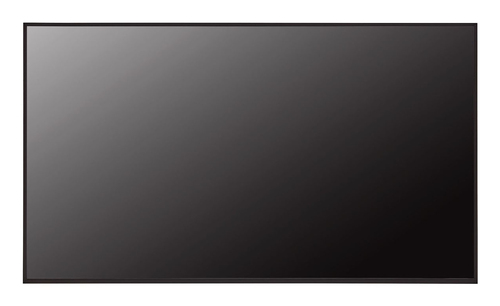

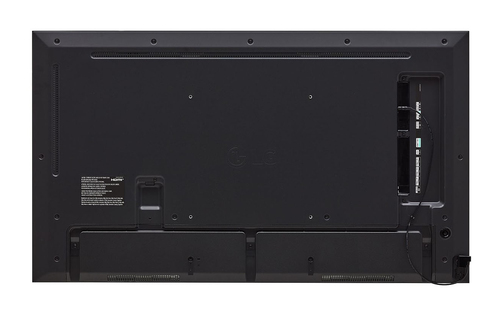

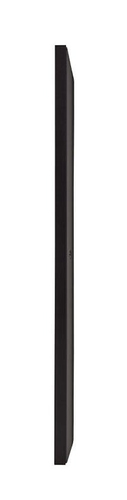

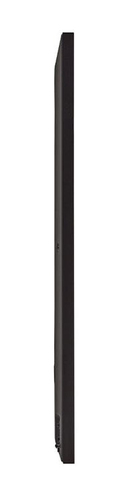

LG 55UV5N-E Signage Display Digital signage flat panel 139.7 cm (55") 500 cd/m² 4K Ultra HD Black WebOS 24/7
Part number 55UV5N-E
55IN LCD 3840X2160 4K MNTR 500NIT WEBOS BRIGHTSIGN OS
- Resolution: 3,840 × 2,160 (UHD)
- Brightness: 500 nit (Typ.)
- 8.9 mm (T/R/L), 12.9 mm (B)
- BrightSignOS
- Manufacturer
- LG
- Part number
- 55UV5N-E
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Specifications
| Panel type | IPS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life | 50000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
| Touch response time | 10 ms |
| HDMI ports quantity | 4 |
|---|---|
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.29 cm |
| Bezel width (side) | 8.9 mm |
| Bezel width (top) | 8.9 mm |
| Bezel colour | 8.9 |
| On Screen Display (OSD) | Yes |
|---|---|
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Power consumption (typical) | 110 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 160 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating system installed | WebOS |
|---|---|
| Operating system version | 6.0 |
| Display width | 1231.4 mm |
|---|---|
| Display depth | 29.7 mm |
| Display height | 707.2 mm |
| Display weight | 16.1 kg |
| Package width | 1360 mm |
|---|---|
| Package depth | 152 mm |
| Package height | 810 mm |
| Package weight | 20.5 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Ethernet LAN | Yes |
|---|
| Introduction year | 2024 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
