LG 55EF5K-P Signage Display 139.7 cm (55") OLED 400 cd/m² Full HD Black 18/7
Part number 55EF5K-P
55IN 1920X1080 OLED HDMI DP PORTRAIT
- Brightness: 150/400nit (APL 100%/25%)
- Depth: 12.4 mm (Head Only)
- Curvature: ~1,000R(Concave/Convex)
- Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
- Manufacturer
- LG
- Part number
- 55EF5K-P
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Overview
Artistic Space beyond Display LG OLED Signage
Blending in with the space while captivating everyone’s mind. LG OLED signage offers flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.
Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
Splendid Design
LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
Absolute Black
Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
Rich Color
LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

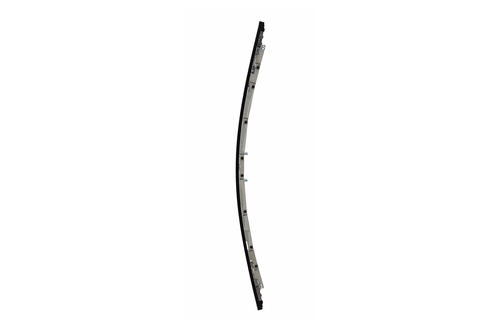

Variety of Curvature for Landmarks
The EF5K series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
On-site Customization
The EF5K series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eye-catching landmark.
LAN Daisy Chain Management
The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
Videowall Playlist & Sync Playback
Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.
Specifications
| Display diagonal | 139.7 cm (55") |
|---|---|
| Display technology | OLED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 1 ms |
| Contrast ratio (dynamic) | 150000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Number of displays | 1 |
| Panel life | 30000 h |
| Colour depth | 10 bit |
| Native refresh rate | 60 Hz |
| Surface hardness | 2H |
| Colour gamut | 120% |
| HDMI ports quantity | 1 |
|---|---|
| DVI port | No |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| PC Audio out | Yes |
| Built-in speaker(s) | No |
|---|
| Placement supported | Indoor |
|---|---|
| Orientation | Vertical |
| Product colour | Black |
| Screen shape | Curved |
| VESA mounting | No |
| Mounting type | Wall |
| Purpose | Commercial |
|---|---|
| Multi-display supported | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 20 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish |
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| HDCP version | 1.4 |
| Power consumption (typical) | 309 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 116 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Heat dissipation | 1054 BTU/h |
| Energy efficiency scale | A to G |
| Display width | 701.4 mm |
|---|---|
| Display depth | 38 mm |
| Display height | 1219.7 mm |
| Display weight | 7 kg |
| Base width | 41.3 cm |
| Base depth | 5.73 cm |
| Base height | 35.3 cm |
| Base weight | 3.5 kg |
| Weight (with stand) | 10.5 kg |
| Package width | 1360 mm |
|---|---|
| Package depth | 252 mm |
| Package height | 842 mm |
| Package weight | 17.6 kg |
| Stand included | Yes |
|---|---|
| Stand colour | Grey |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, DisplayPort, LAN (RJ-45), RS-232 |
| Mounting kit | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Certification | IEC 60950-1 / EN 60950-1 / UL 60950-1 / FCC Class "A" / CE / KC / ErP |
|---|
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Suitable for indoor use | Yes |
|---|---|
| Wall mountable | Yes |
| Heat dissipation (max) | 1085 BTU/h |
| Other features | webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
