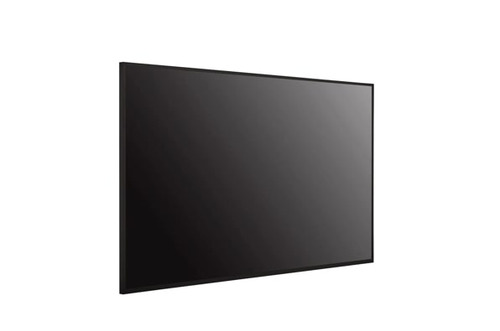

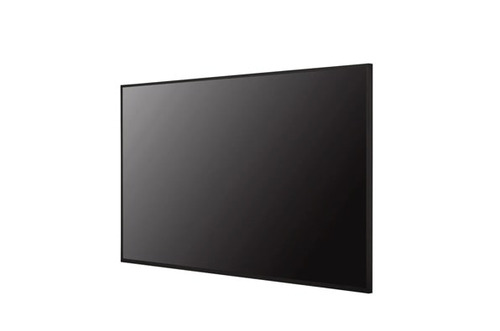

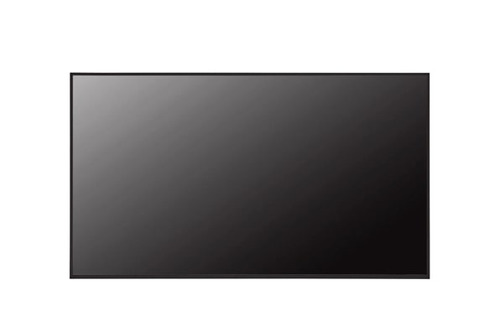

LG 43UP5Q-E Signage Display Digital A-board 109.2 cm (43") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor WebOS 24/7
Part number 43UP5Q-E
43IN LCD 3840X2160 MNTR WEBOS 8.0 WIFI BT HDMI 24/7 3YR
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 8.9 mm (T/R/L), 2.9 mm (B)
- Surface Treatment (Haze) : 28%
- Manufacturer
- LG
- Part number
- 43UP5Q-E
- Condition
- New
- Category
- Displays › Large Format Displays
- 1GPA category
- Hardware
Overview
UP5Q-E offers a crisp 4K, Ultra High Definition resolution. Paired with anti-glare coating, reduced screen reflection allows for dynamic displays even under bright lights.
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats.
LG's new webOS platform supports detailed text-based content playback with 4K OSD, ensuring that 4K app content is displayed smoothly. Thanks to its powerful CPU and GPU performance, it can deliver seamless content playback, even when handling graphics and data-intensive tasks. Additionally, the multi-screen feature offers 4-screen streaming capabilities, enhancing the overall user experience.
Experience seamless 4K playback with UP5Q-E, ensuring smooth content transitions. With 32GB storage, it offers efficient file transfer through USB 3.0, reducing potential delays in content playback and updates.
Specifications
| Panel type | ADS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Display diagonal | 109.2 cm (43") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Display diagonal (metric) | 109 cm |
| Panel life | 50000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 3 |
|---|---|
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) out | 1 |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital A-board |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 1.29 cm |
| Bezel width (side) | 8.9 mm |
| Bezel width (top) | 8.9 mm |
| Purpose | Commercial |
|---|---|
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2/1.x |
| Power consumption (typical) | 69 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Computer system | Yes |
|---|---|
| Built-in processor | Yes |
| Operating system installed | WebOS |
| Operating system version | 8.0 |
| Display width | 963 mm |
|---|---|
| Display depth | 29.7 mm |
| Display height | 556.2 mm |
| Display weight | 11.1 kg |
| Package width | 1055 mm |
|---|---|
| Package depth | 142 mm |
| Package height | 660 mm |
| Package volume | 12800 cm³ |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | Yes |
