Products › Displays

LG

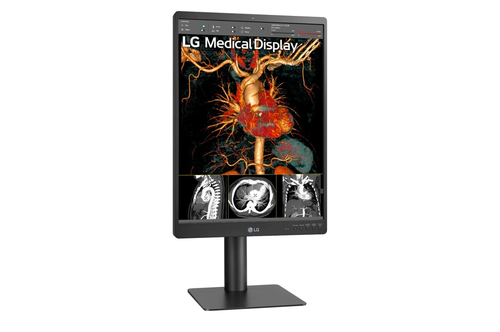

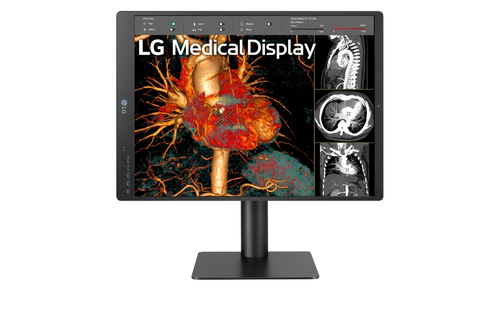

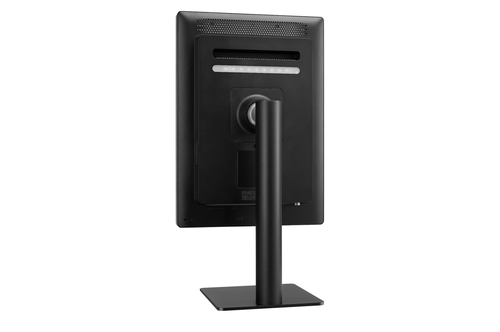

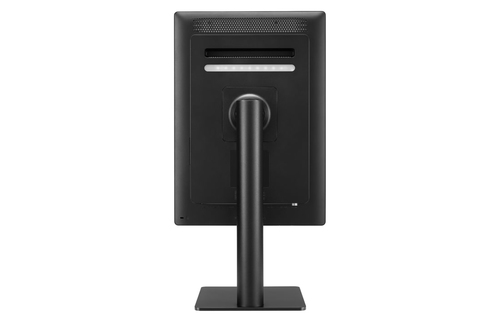

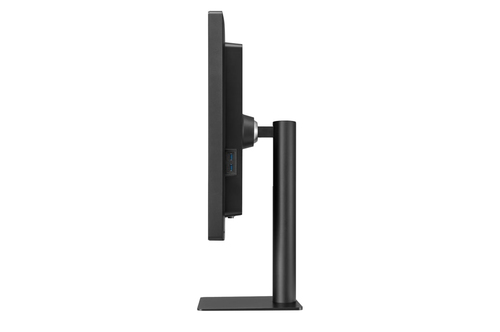

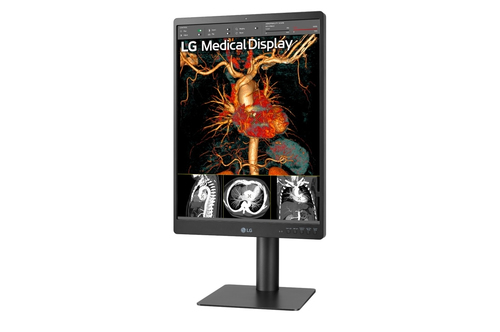

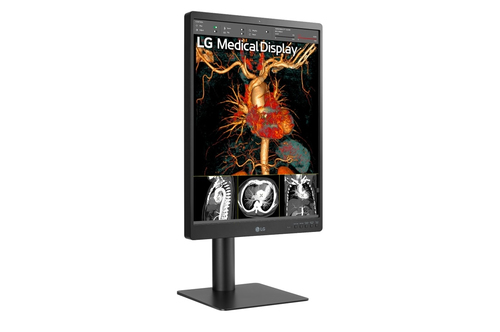

LG 21HQ513D-S computer monitor 54.1 cm (21.3") 1536 x 2048 pixels Black

Part number 21HQ513D-S

LG MED 21IN IPS 3MP DIAGNOSTIC MONITOR 2048 X 1536 FDA

  • 21.3-inch 3MP IPS Display
  • 1200cd/m² Brightness (Typ.)
  • Pathology Mode, Focus View Mode
  • Down light & Wall light
  • Ergonomic Design
Manufacturer
LG
Part number
21HQ513D-S
Condition
New
Category
Displays › Computer Monitors
1GPA category
Hardware

Overview

Manage Effortless Quality Control

The Integrated Front Sensor allows easy calibration ​without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

Compatible with Various Device

Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.

True-to-Life Color Reproduction

In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

Hassle-free Savings & Stronger Security

Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.

Fully Focus on the Region of Interest

LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.

Ideal Diagnostic Workspace

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

Intuitive Control

The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.

Reducing Eye Strain

LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

Reducing Clutter on Your Desk and Simplifying Cable Management

The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.

Easy and Comfortable Workspace

The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.

Specifications

Display
Display diagonal54.1 cm (21.3")
Display resolution1536 x 2048 pixels
Native aspect ratio3:4
Panel typeIPS
TouchscreenNo
Display brightness (typical)1100 cd/m²
Response time5 ms
Anti-glare screenYes
Screen shapeFlat
Contrast ratio (typical)1800:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2115 x 0.2115 mm
Surface hardness3H
Colour depth10 bit
NTSC coverage (typical)72%
Performance
Flicker-free technologyYes
Design
Market positioningMedical
Product colourBlack
Feet colourBlack
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports2
USB Type-A downstream ports quantity2
DVI portYes
DisplayPorts quantity3
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
Height adjustmentYes
Adjustable height (max)11 cm
PivotYes
Pivot angle0 - 90°
Tilt angle range-5 - 20°
Power
Power consumption (off)0.3 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
AC adapter output voltage6.32 V
Power supply typeExternal
Weight & dimensions
Width (with stand)343.1 mm
Depth (with stand)234.6 mm
Height (with stand)640 mm
Weight (with stand)7 kg
Width (without stand)343.1 mm
Depth (without stand)72.4 mm
Height (without stand)484 mm
Weight (without stand)5 kg
Packaging data
Package width636 mm
Package depth163 mm
Package height551 mm
Package weight9.5 kg
Package typeBox
Packaging content
Stand includedYes
Cables includedDVI, DisplayPort, Power, USB
Other features
Brand specific technologiesBlack Stabilizer, Super+ Resolution
Compliance certificatesREACH, RoHS, WEEE

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
