Overview

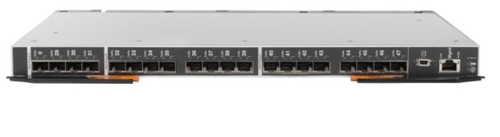

The IBM Flex System™ FC5022 16Gb SAN Scalable Switch is a Gen 5 Fibre Channel (FC) high-density, 48-port switch that operates at 16 and 8 Gbps FC speeds and is used in the IBM Flex System chassis. The switch provides 28 internal ports to compute nodes by way of the Flex midplane and 20 external SFP+ ports, as shown in Figure 1. The FC5022 SAN switch module delivers a scalable embedded option for IBM Flex System users connecting to 8 or 16 Gbps FC storage, deploying a new storage area network (SAN) or connecting to an existing SAN in their enterprise. The switch offers end-to-end 16 Gb with backwards compatibility to 8 Gb and 4 Gb to the SAN connectivity. Monitoring and management are simplified using end-to-end Brocade tools, such as Web Tools and the Brocade Network Advisor (BNA).
Specifications
Management features
| Switch type | Managed |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 2 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| SFP+ module slots quantity | 20 |
|---|
| Fiber ports quantity | 28 |
|---|
| Fiber optic connector | FC |
|---|
| Console port | RS-232 |
|---|
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
|---|
| 10G support | No |
|---|
| Full duplex | Yes |
|---|
Data transmission
| Switching capacity | 16 Gbit/s |
|---|
Security
| Security algorithms | SSH-2 |
|---|
| SSH/SSL support | Yes |
|---|
Protocols
| Management protocols | SNMP v1 |
|---|
Design
| Stackable | Yes |
|---|
| Product colour | Black |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|
| Storage temperature (T-T) | 5 - 45 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 8 - 80% |
|---|
Weight & dimensions
| Width | 401 mm |
|---|
| Depth | 317 mm |
|---|
| Height | 30 mm |
|---|
| Weight | 3.2 kg |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
