Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA

Part number 7Y37A01091

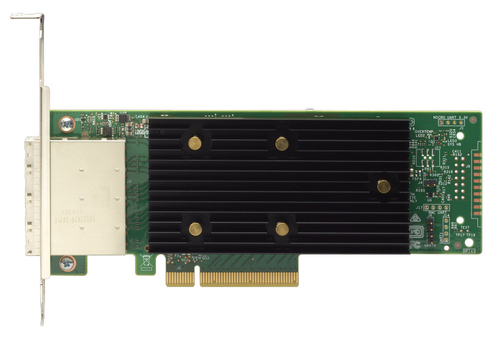

THINKSYSTEM 430-16E SAS/SATA HBA

PCIe 3.0 x8 host interface
12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
PCI low profile, half-length form factor
External 12 Gbps SAS/SATA ports:
430-8e: 8 SAS/SATA ports
430-16e: 16 SAS/SATA ports
Connectivity for up to 512 external SAS or SATA drives (future planned support for an upper limit of 1024 drives)
Up to 12 Gbps throughput per port
Supports 12, 6, or 3 Gbps SAS speeds
Supports 6 or 3 Gbps SATA speeds
External x4 HD Mini-SAS connectors (SFF-8644):
430-8e: 2 external connectors

Manufacturer: Lenovo
Part number: 7Y37A01091
Condition: New
Category: Storage Devices › SAN Infrastructure
1GPA category: Hardware

Overview

The Lenovo ThinkSystem 430-8e and 430-16e SAS/SATA 12Gb HBAs are high performance host bus adapters for external storage connectivity in ThinkSystem servers. The 430-8e provides two x4 external mini-SAS HD connectors with eight lanes of 12 Gbps SAS. The 430-16e provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

Specifications

Ports & interfaces
Host interface	PCIe
Output interface	SAS, SATA
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
External mini-SAS HD ports	4

Design
Internal	Yes
Product colour	Black, Green
Certification	FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) WEEE EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B)

Features
Data transfer rate (max)	12000 Gbit/s

Operational conditions
Operating temperature (T-T)	10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 95%

Technical details
Compliance certificates	RoHS

Logistics data
Harmonized System (HS) code	84733020

Other features
Compatible operating systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5
Compatibility	SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
