Overview
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | PCI Express |
|---|
| Interface | Ethernet |
|---|
| Ethernet LAN (RJ-45) ports | 4 |
|---|
| PCI version | 3.0 |
|---|
Network
| Maximum data transfer rate | 10000 Mbit/s |
|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
|---|
| Ethernet interface type | 10 Gigabit Ethernet |
|---|
Design
| Component for | Server |
|---|
| Product colour | Green |
|---|
| Internal | Yes |
|---|
| Certification | EN55022
EN55024
EN 61000-3-2
EN 61000-3-3
ICES-003, Issue-004
FCC 47 CFR Part 15 Class A
VCCI
AS/NZS CISPR 22 / C-tick
RRL for KC
BSMI
UL 94 V-1 |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|
| Storage temperature (T-T) | -20 - 65 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
| Storage relative humidity (H-H) | 5 - 80% |
|---|
Weight & dimensions
| Width | 15 mm |
|---|
| Depth | 167 mm |
|---|
| Height | 69 mm |
|---|
Packaging data
| Package width | 143 mm |
|---|
| Package depth | 238 mm |
|---|
| Package height | 51 mm |
|---|
Technical details
| Compliance certificates | RoHS |
|---|

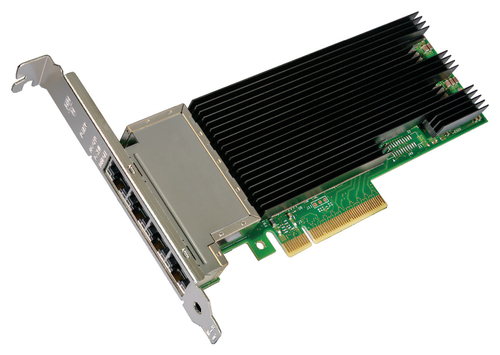

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
