Lenovo

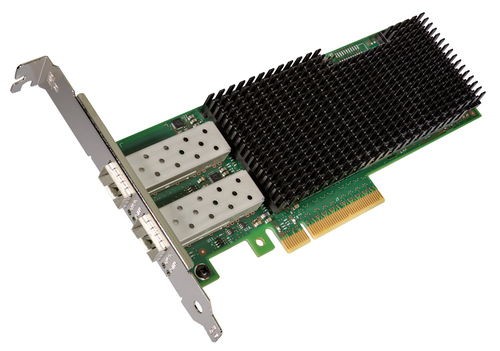

Lenovo 7XC7A05523 network card Internal Ethernet / Fiber 25000 Mbit/s

Part number 7XC7A05523

XXV710-DA2 PCIE 25GB 2PORT SFP28 EA

  • Wired
  • PCI Express Ethernet / Fiber
  • 25000 Mbit/s
  • Internal Component for: Server
Manufacturer
Lenovo
Part number
7XC7A05523
Condition
New
Category
Storage Devices › SAN Infrastructure
1GPA category
Hardware

Overview

The Intel XXV710 25Gb dual-port Ethernet adapter is a flexible follow-on to the X710 10Gb adapters and is best suited for existing 10Gb customers where they need to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

This product guide provides essential presales information to understand the XXV710 adapter and its key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about XXV710 and consider its use in IT solutions.

Specifications

Ports & interfaces
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet / Fiber
Fiber ports quantity2
Fiber optic connectorSFP28
PCI Card form factorFull-height (low-profile)
Network
Maximum data transfer rate25000 Mbit/s
Networking standardsIEEE 1588, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x
Full duplexYes
Jumbo frames supportYes
Jumbo frames9728
VLAN taggingYes
iSCSI supportYes
Load balancing systemYes
Design
Component forServer
Product colourBlack, Green
InternalYes
LED indicatorsYes
CertificationEN55032 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A Japan VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1
System requirements
Compatible operating systemsMicrosoft Windows Server 2012 R2 Microsoft Windows Server 2016 Microsoft Windows Server Core RS3 Red Hat Enterprise Linux 6.9 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 7.4 SUSE Linux Enterprise Server 11 SP4 SUSE Linux Enterprise Server 11 SP4 with Xen SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 12 SP2 with Xen SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP3 with Xen VMware vSphere ESXi 6.0 U3 VMware vSphere ESXi 6.5 U1
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)10 - 90%
Packaging data
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code85176990
Other features
Flow control supportYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
