Overview

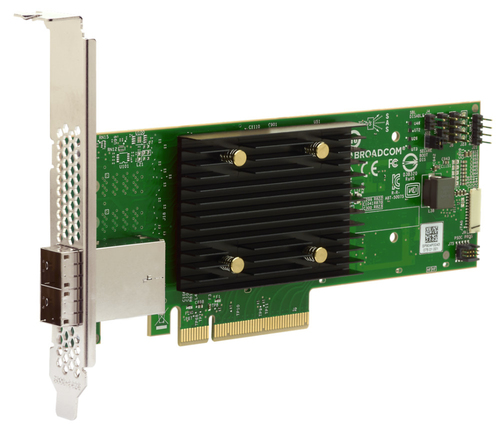

The Lenovo ThinkSystem 440-8e and 440-16e SAS/SATA 12Gb HBAs are high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapters provide either two or four x4 external mini-SAS HD connectors to provide connectivity to external storage devices such as ThinkSystem DE Series storage and LTO9 tape drives.
This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
Specifications
Ports & interfaces
| Host interface | PCIe |
|---|
| Host interface gender | Male |
|---|
| Output interface | Mini-SAS |
|---|
| Expansion card form factor | Low-profile |
|---|
| Expansion card standard | PCIe 4.0 |
|---|
Design
| Internal | Yes |
|---|
| Product colour | Multicolour |
|---|
| Purpose | Server |
|---|
| Certification | FCC Part 15 Class A
Australia/New Zealand (AS/NZS CISPR 22)
Canada (ICES-003 Class B)
Europe (EN55022/EN55024)
Japan (VCCI V-3)
Korea (RRA no 2013-24 & 25)
RoHS compliant
EN/IEC/UL 60950
Taiwan (CNS 13438)
USA (FCC 47 CFR part 15 Subpart B class B)
WEEE |
|---|
Features
| Data transfer rate (max) | 12 Gbit/s |
|---|
| S.M.A.R.T. support | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 10 - 55 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 20 - 90% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
