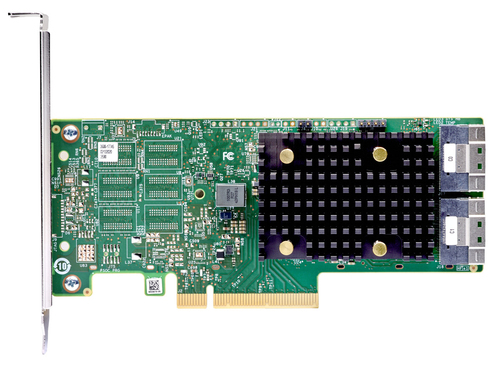

Lenovo 4Y37A78602 interface cards/adapter Internal SAS, SATA
Part number 4Y37A78602
440-16I SAS/SATA HBA
- Internal
- Host interface: PCIe
- Output interface: SAS, SATA
- Purpose: Server
- 12 Gbit/s
- Manufacturer
- Lenovo
- Part number
- 4Y37A78602
- Condition
- New
- Category
- Accessories › Storage Accessories
- 1GPA category
- Hardware
Overview
The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS.
This product guide provides essential presales information to understand the ThinkSystem HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
Specifications
| Host interface | PCIe |
|---|---|
| Host interface gender | Male |
| Output interface | SAS, SATA |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
|---|---|
| Purpose | Server |
| Cooling type | Passive |
| Certification | USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE |
| Data transfer rate (max) | 12 Gbit/s |
|---|
| Operating temperature (T-T) | 10 - 55 °C |
|---|---|
| Storage temperature (T-T) | -40 - 105 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
