Lenovo
Lenovo 4XH1Q60514 interface cards/adapter Internal Mini DisplayPort, RJ-45
Part number 4XH1Q60514
ACCKIT_BO TS BMC PCIE ADAPTER P P8/P7/P5
- Access out-of-band management capability
- Make maintenance easier and reduce maintenance costs, remote IT support even OS hang
- Manage smarter and more automatic with script
- Manufacturer
- Lenovo
- Part number
- 4XH1Q60514
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview

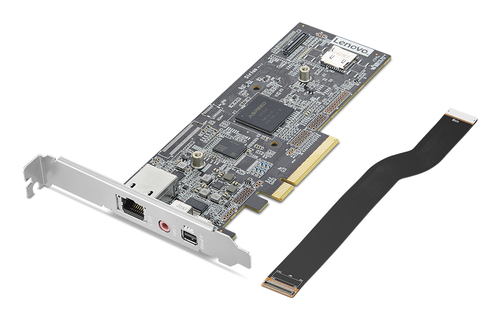

The ThinkStation BMC PCIE adapter - P8/P7/P5 is a specialized service processor that monitors the physical state of a computer, network server, or other hardware device using sensors and communicating with the system administrator through an independent connection. WIth this BMC card a system administrator is able to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system.
Specifications
| Host interface | PCIe |
|---|---|
| Output interface | Mini DisplayPort, RJ-45 |
| Internal | Yes |
|---|---|
| Product colour | Black |
| Certification | BSMI EMC test report and DoC FCC sDoC ICES-003 CE EMC report and EU DoC UK DOC VCCI KCC(EMC) RCM EMC (Safety not mandatory) CB Declaration of conformity ECAS or EQM |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Width | 167.5 mm |
|---|---|
| Depth | 20 mm |
| Height | 68.9 mm |
| Weight | 80 g |
| Package weight | 100 g |
|---|---|
| Package type | Box |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
