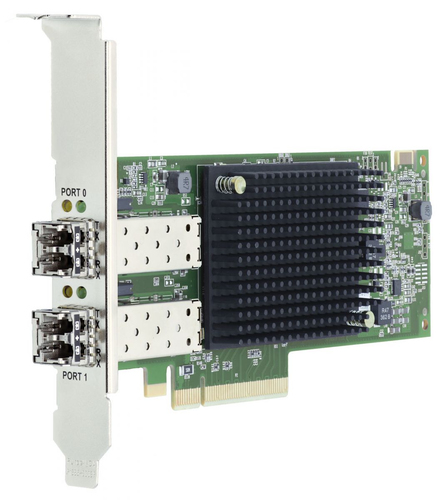

Lenovo 4XC7A76525 network card Internal Fiber 32000 Mbit/s
Part number 4XC7A76525
EMULEX LPE35002 32GB 2PORT HBA V2
- Wired
- PCI Express 4.0 Fiber
- 32000 Mbit/s
- Internal Component for: Server
- Manufacturer
- Lenovo
- Part number
- 4XC7A76525
- Condition
- New
- Category
- Storage Devices › SAN Infrastructure
- 1GPA category
- Hardware
Overview
The next generation Emulex 32 Gb LPe35000/LPe35002 1-port and 2-port Fibre Channel host bus adapters for ThinkSystem servers are an ideal solution when requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
Specifications
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 4.0 |
| Maximum data transfer rate | 32000 Mbit/s |
|---|
| Component for | Server |
|---|---|
| Product colour | Black, Green, Stainless steel |
| Internal | Yes |
| Hot-Plug support | Yes |
| Certification | AS/NZS CISPR22:2009+A1, Class A, Australian EMC Framework (RCM), China RoHS compliant, cUR recognized to CSA 22.2, No. 60950-1-07, EN55022:2010, Class A, EN55024:2010, EN55032:2012, EU (CE Mark), FCC Rules, Part 15, Class A, Industry Canada, ICES-003, Class A, Japan VCCI, Class A, Korea MSIP, Class A, RoHS Compliant (Directive 2011/65/EU), TUV certified to EN60950-1+A11+A1+A12+A2, Taiwan BSMI, Class A, UL recognized to UL60950-1 2nd Edition |
| Compatible products | SR630 (7X01/7X02), SR650 (7X05/7X06), SR635 (7Y98 / 7Y99), SR655 (7Y00 / 7Z01), SR850 (7X18/7X19), SR860 (7X69/7X70), SR950 (7X11/12/13) |
| Compatible operating systems | Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3 |
|---|---|
| Server operating systems supported | SUSE Linux Enterprise Server 12, Windows Server 2016, Windows Server 2019 |
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 69 mm |
|---|---|
| Depth | 168 mm |
| Harmonized System (HS) code | 85176990 |
|---|
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 55 °C |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
