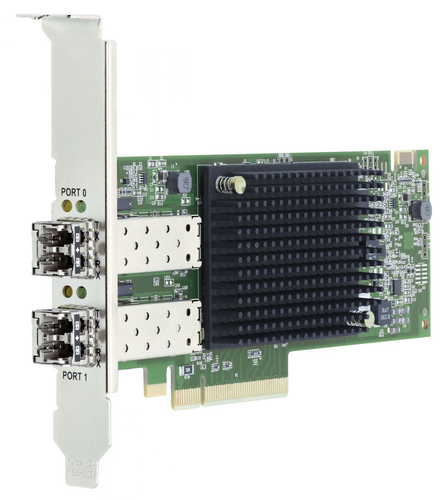

Lenovo Emulex LPe35002 Internal Fiber 32000 Mbit/s
Part number 4XC7A08251
EMULEX LPE35002 32GB 2-PORT HBA
- Wired
- PCI Express 4.0 Fiber
- 32000 Mbit/s
- Internal Component for: Server
- Manufacturer
- Lenovo
- Part number
- 4XC7A08251
- Condition
- New
- Category
- Storage Devices › SAN Infrastructure
- 1GPA category
- Hardware
Overview
The Emulex 32 Gb FC HBAs have an advanced ASIC which can achieve 5M IOPS per adapter, 3x more than the previous generation adapter, which speeds up applications, all-flash arrays (AFAs), and allows you to handle peak workload I/O spikes.
Compared to the previous generation, Emulex Gen 7 FC HBAs offer up to 3x better latency, enhanced security, and operational efficiency for 32GFC SANs. The adapters support a PCIe 4.0 host interface which enables 2x more bandwidth per lane with servers that have PCIe 4.0 support.
Specifications
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 4.0 |
| Maximum data transfer rate | 32000 Mbit/s |
|---|
| Component for | Server |
|---|---|
| Product colour | Black, Green, Stainless steel |
| Internal | Yes |
| Hot-Plug support | Yes |
| Certification | AS/NZS CISPR22:2009+A1, Class A, Australian EMC Framework (RCM), China RoHS compliant, cUR recognized to CSA 22.2, No. 60950-1-07, EN55022:2010, Class A, EN55024:2010, EN55032:2012, EU (CE Mark), FCC Rules, Part 15, Class A, Industry Canada, ICES-003, Class A, Japan VCCI, Class A, Korea MSIP, Class A, RoHS Compliant (Directive 2011/65/EU), TUV certified to EN60950-1+A11+A1+A12+A2, Taiwan BSMI, Class A, UL recognized to UL60950-1 2nd Edition |
| Compatible products | SR630 (7X01/7X02), SR650 (7X05/7X06), SR635 (7Y98 / 7Y99), SR655 (7Y00 / 7Z01), SR850 (7X18/7X19), SR860 (7X69/7X70), SR950 (7X11/12/13) |
| Compatible operating systems | Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3 |
|---|---|
| Server operating systems supported | SUSE Linux Enterprise Server 12, Windows Server 2016, Windows Server 2019 |
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 69 mm |
|---|---|
| Depth | 168 mm |
| Harmonized System (HS) code | 85176990 |
|---|
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 55 °C |
