Overview

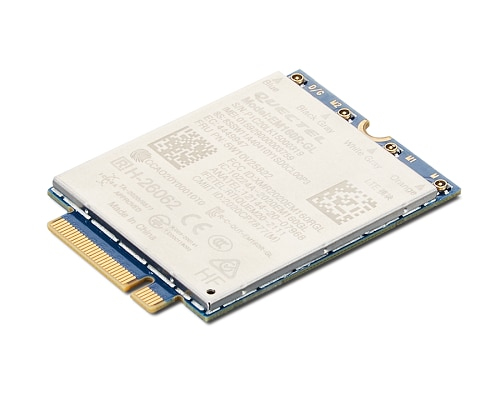

The ThinkStation Quectel CAT16 WWAN Module (w/MIMO) is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCI Express M.2 interface. With a downlink speed of up to 1000 Mbps and uplink speed of up to 150 Mbps, the CAT16 WWAN module enhances the network reliability and availability of your devices, and provides a great cellular solution for users.
Specifications
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Host interface | M.2 |
|---|
| Interface | WWAN |
|---|
Network
| Maximum data transfer rate | 1000 Mbit/s |
|---|
| Mobile network generation | 4G |
|---|
Design
| Component for | PC |
|---|
| Product colour | Multicolour |
|---|
| Internal | Yes |
|---|
| Certification | CE, FCC, ANATEL, TELEC&JATE, RCM SDoC, KC, NCC, IC, ICASA, IFETEL |
|---|
System requirements
| Windows operating systems supported | Windows 10 |
|---|
Operational conditions
| Operating temperature (T-T) | -25 - 75 °C |
|---|
| Operating relative humidity (H-H) | 0.1 - 0.9% |
|---|
Weight & dimensions
| Width | 42 mm |
|---|
| Depth | 30 mm |
|---|
| Height | 2.3 mm |
|---|
| Weight | 6.8 g |
|---|
Packaging data
| Package width | 53 mm |
|---|
| Package depth | 144 mm |
|---|
| Package height | 177 mm |
|---|
| Package weight | 30 g |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
