Overview

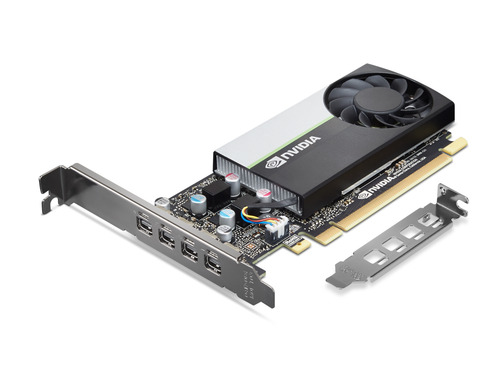

Nvidia T1000E 8GB Graphics Card is powered by NVIDIA Turing graphics processing unit (GPU) technology and 8GB of GGDR6 memory. The NVIDIA T1000E graphics board is targeted for professional CAD, DCC and visualization designers, engineers, and users. Get the budget friendly high performing graphics board to drive today’s demanding professional workflows in a compact footprint.
Specifications
Processor
| CUDA | Yes |
|---|
| CUDA cores | 896 |
|---|
| Graphics processor family | NVIDIA |
|---|
| Graphics processor | T1000 |
|---|
| Maximum resolution | 7680 x 4320 pixels |
|---|
Memory
| Discrete graphics card memory | 8 GB |
|---|
| Graphics card memory type | GDDR6 |
|---|
| Memory bus | 128 bit |
|---|
| Memory bandwidth (max) | 160 GB/s |
|---|
Ports & interfaces
| Interface type | PCI Express x16 3.0 |
|---|
| Mini DisplayPorts quantity | 4 |
|---|
| DisplayPort version | 1.4 |
|---|
Performance
| Peak Single Precision Matrix (FP32) performance | 2.5 TFLOPS |
|---|
| TV tuner integrated | No |
|---|
| DirectX version | 12.07 |
|---|
| Shader model version | 5.17 |
|---|
| OpenGL version | 4.68 |
|---|
| HDCP | Yes |
|---|
| HDCP version | 2.2 |
|---|
| Dual Link DVI | No |
|---|
Design
| Cooling type | Active |
|---|
| Number of fans | 1 fan(s) |
|---|
| Form factor | Half-Height/Half-Length (HH/HL) |
|---|
| Bracket height | Low-Profile (LP) |
|---|
| Number of slots | 1 |
|---|
| Product colour | Black, Grey |
|---|
| Certification | UL
FCC
BSMI
KC
VCCI
UKCA
CE
CB
RCM
Ukraine DOC
Morocco DOC |
|---|
Power
| Power consumption (max) | 50 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90% |
|---|
System requirements
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
|---|
Weight & dimensions
| Weight | 136 g |
|---|
| Length | 155.9 mm |
|---|
| Height | 68.9 mm |
|---|
Packaging data
| Package width | 325 mm |
|---|
| Package depth | 195 mm |
|---|
| Package height | 85 mm |
|---|
| Package weight | 500 g |
|---|
| Package type | Box |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
